Burndy Burndy BDBMHC112/03


Description

Industry Description

Power Distribution Block, Glass Filled Polycarbonate, AWG 14 - 2/0 (Run), AWG 14 - 2/0 (Tap)

AD Description

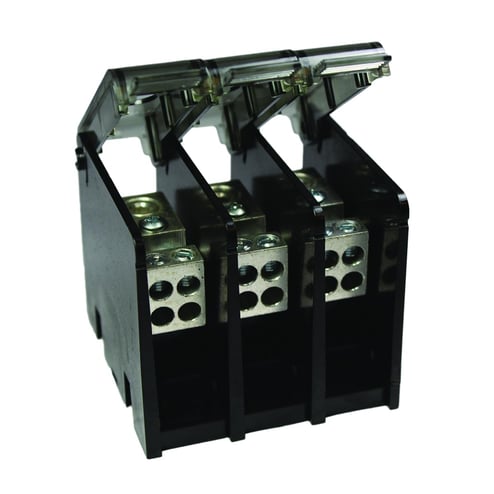

BURNDY® Versi-Pole™ BDBMHC112/03 Power Distribution Block, 600 VAC, 175 A, 3 Poles, 14 to 2/0 AWG, 14 to 2/0 AWG Wire, Aluminum

Vendor Description

These Power Distribution Blocks are Listed to the Power Distribution Block Standard UL 1953. They contain the same features and characteristics as the non-Listed blocks however, these have spacing's that are suitable for installations in most industrial control panel feeder and branch circuits, HVAC systems, and Wireways (with optional cover; sold separately). They are available in one, two, or three pole configurations. An Adder is also available with optional End Barrier (sold separately), to allow user customized configurations.

Specifications

Amperage Rating
175
Application
Industrial control feeder, HVAC system and wire ways
Country of Origin
MX
Insulation
True
Length1
5.0000
Material
Aluminum
Size
5.28 X 3.88 X 3.25
Special Features

  • 14 to 2/0 AWG run/14 to 2/0 AWG tap
  • Glass filled polycarbonate
  • High short circuit rating up to 100 kA with proper fusing
  • Meets spacing requirements of industrial control panel standard UL 508A (spacing of 1 in through air and 2 in over surface)
  • Range taking designs to accommodates wire sizes up to 600 kcmil
  • Single or dual run connections allow the user to minimize the number of connections required
  • Suitable for use with aluminum or copper conductors providing maximum versatility
Sub_Brand
VERSI-POLE
Temperature_Rating
194
Type
BDB
