Siemens Siemens LXD63B600H
Siemens LXD63B600H
Kirby Risk #: 3330955
UPC: 78364322939, 783643229396, 00783643229396
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED 100 PERCENT RATED STANDARD 40 DEG C BREAKER LD FRAME WITH STANDARD BREAKING CAPACITY. 600A 3-POLE (25KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
Modified Industry Description
BRKR LD6 3P 600V 600A FX 100
AD Description

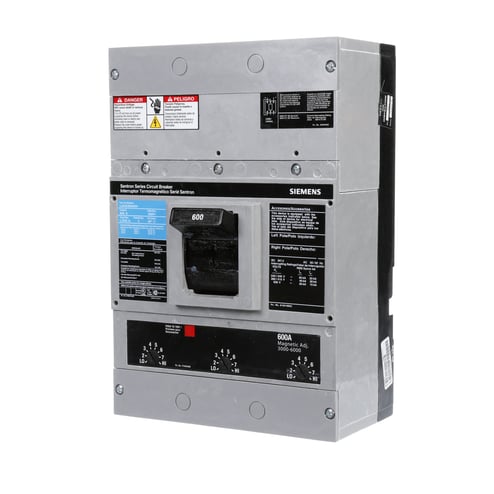

Siemens Sentron™ LXD63B600H Type LXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 600 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
600
|
| Application |
Standard 40C Breaker
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Dimensions |
6.6 in L x 8.9 in W x 14.6 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
LXD6
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Length1 |
25.3500
|
| Material |
N/A
|
| Mounting_Type |
Bolt-On
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Special Features |
|
| Standard |
UL/HACR/100% Rated
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
600
|
