Burndy Burndy Y3129R


Description

Industry Description

Cu Reducer Adapter Sleeves, 350 kcmil-250 kcmil Code, 600V-35kV, Tin Plated, Compression.

AD Description

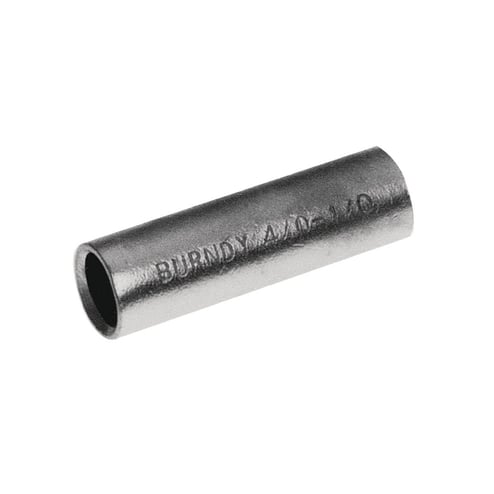

BURNDY® Y3129R Type Y-R Compression Reducer Adapter Sleeve, 250 to 350 kcmil Stranded Copper Conductor, 2 in L, Copper

Vendor Description

The Y-R reducing adapter has been designed to allow large size, long barrel, copper long barrel HYDENT™, HYSPLICE™ and HYTEE terminals, splices and T taps to be used on smaller conductor sizes. To use, simply insert the reducer into the barrel, insert the wire into the reducer adapter and crimp the outer barrel using its recommended tooling.

Specifications

Application
Wire Reducing Splice Adapter Insert
Conductor Type
Stranded Copper
Conductor Size
250 to 350
Country of Origin
US
Dimensions
0.687 in OD
Finish
Electro-Plated Tin
Length1
2
Material
Copper
Size
2 X 0.687 X 0.687
Special Features

  • Length fits the long barrel connector design (YS, YA), can be used on all long barrel connectors, field cut to fit shorter length compression barrels (YS-L, YA-L)
  • Long barrel
  • Provides maximum conductivity low resistance and ductility for an excellent combination of electrical and crimp forming properties and provides long lasting corrosion resistance
  • Same die set for all legs of the connection, permits the same tool and die combination normally used on the compression barrel
  • Wide range of conductors are accommodated, lowers inventory requirements and affords maximum versatility
Standard
RoHS Compatible
Sub_Brand
Reducer Splices
Temperature_Rating
90
Type
Type Y-R
Voltage Rating
600 to 35000
