Burndy Burndy YAZV27TC38FX


Description

AD Description

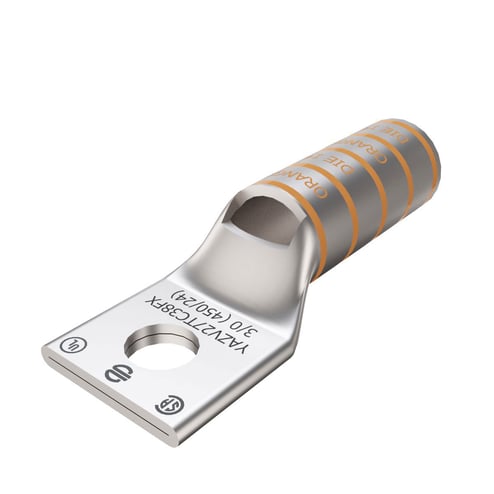

BURNDY® HYLUG™ YAZV27TC38FX 1-Hole Compression Lug With Inspection Window, 3/0 AWG Stranded Copper Conductor, Die Code: 14, 3/8 in Stud, Tin Copper

Vendor Description

The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35KV. See each catalog page for UL 35kV listings.

Specifications

Application
Wire Termination
Color
Orange
Conductor Type
Stranded Copper
Conductor Size
3/0
Country of Origin
US
Length1
2.8400
Material
Tin Copper
Special Features

  • Each connector is clearly marked with the wire size and type, die index, and color coding
  • Manufactured from seamless high conductivity electrolytic copper tubing with heavy duty wall thickness
  • Provides an excellent relationship of the conductor/connector combination to produce a high quality electrical connection with the recommended tooling
  • Provides durable long-lasting corrosion resistance
  • Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties
Standard
UL 486A-486B
Sub_Brand
HYLUG
Temperature_Rating
90
Type
1-Hole
Voltage Rating
600 to 35000
