STI STI EZD44S2

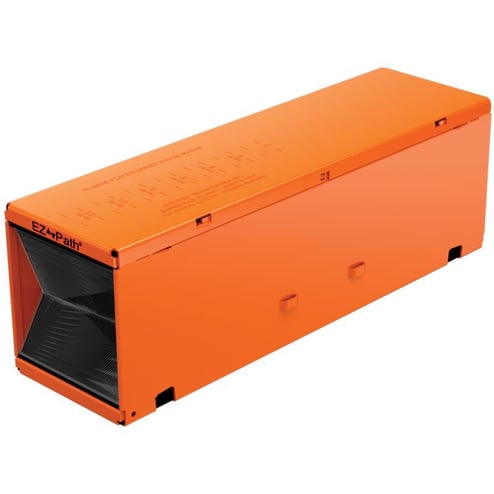

STI EZD44S2
Kirby Risk #: 3298099
UPC: 73057300100, 730573001004, 00730573001004
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: STI
Specifications
| Application |
Firestopping/Cables, wires through rated walls and floors.
|
|---|---|
| Color |
Orange
|
| Construction |
Designed for high cable volume conditions through fire-rated walls and floors while eliminating the burden of ongoing maintenance. The Series 44+ incorporates self-sealing intumescent pads that automatically adjust to the installed cable fill without the need for user manipulation. Under fire exposure, the intumescent pads expand and swell resisting the passage of smoke and flame.
|
| Country of Origin |
USA
|
| Length1 |
13.5000
|
| Material |
Galvanized Steel
|
| Mounting |
Wall Plate
|
| Special Features |
Self Sealing design provides exceptional fire and smoke leakage ratings., Allows for easy Moves, Adds, and Changes., Designed for New and Existing conditions., Variety of accessories available for any field condition., Modular grid system for riser applications., Greatest achievable cable density of any solution on the market.
|
| Standard |
ASTM E814, UL 1479, CAN/ULC S115
|
| Sub_Brand |
EZD
|
| Temperature_Rating |
-10 to 120
|
| Type |
Fire Rated Cable Pathways
|
