Siemens Siemens FXD63B225BP
Siemens FXD63B225BP
Kirby Risk #: 3296236
UPC: 78364337120, 783643371200, 00783643371200
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 225A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES VALUE PACK, NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
Modified Industry Description
BRKR FD6 3P 600V 225A FX BP
AD Description

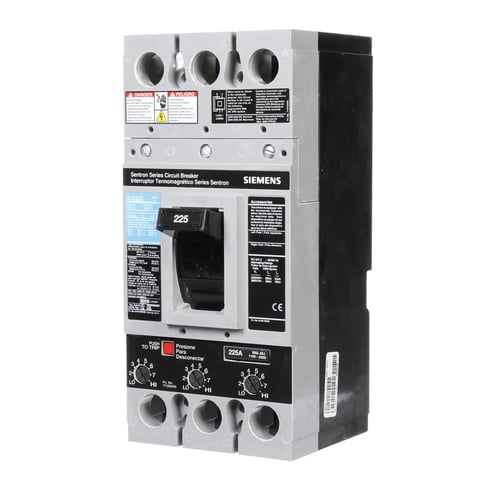

Sentron™ Speedfax™ FXD63B225BP Low Voltage Molded Case Circuit Breaker, 600 VAC, 225 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
SiemensSentronSeriesCircuit Breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens SentronSeries circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
225
|
| Application |
Standard 40C Breaker
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Dimensions |
4.1 in L x 5.1 in W x 10 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
FD
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
22
|
| Length1 |
10.0000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Special Features |
|
| Standard |
HACR
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
600
|
