Appleton Appleton IAMLGL7CG7BU


Description

Industry Description

INDUSTRIAL AREAMASTER II LED FLOOD,15K LUMEN,5000K CCT,CLEAR GLASS,NEMA 7x6,120-277VAC, 170-300VDC

AD Description

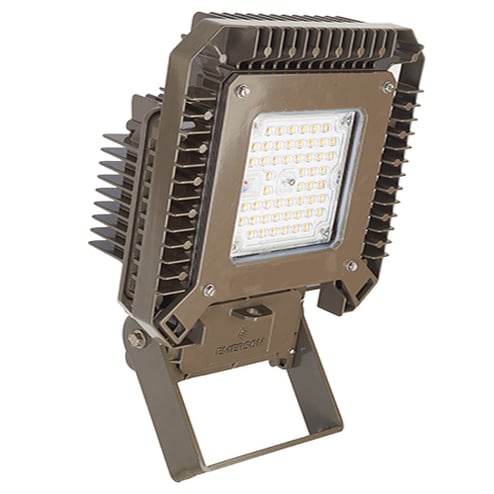

Appleton® Areamaster™ II IAMLGL7CG7BU Generation 2 Rectangular Floodlight Luminaire,) LED Lamp, 106/111/113 W Fixture, 120 to 277 VAC, 170 to 300 VDC, Architectural Bronze Polyester Housing

Vendor Description

Industrial Areamaster™ generation 2 LED Luminaires deliver best-in class LED performance. The redesigned Areamaster™ provides greater versatility, with models from 9000 to 19500 Lumens and a choice of beam patterns to meet your diverse floodlighting needs. Featuring new optic designs for superior uniformity and coverage, the Areamaster™ Generation 2 LED luminaires provide HID equivalent lighting that saves over 75% in energy costs and practically eliminates maintenance burdens. They are certified for industrial and ordinary locations and rated for use in NEC and CEC installations.

Specifications

Application
FLOOD
Color
Bronze
Country of Origin
MX
Length1
24.0000
Mounting
Yoke
Size
12.94X16.28X5.05
Special Features

  • (2) 3/4 in NPT entries provided
  • 0.94 A at 120 VAC, 0.43 A at 277 VAC, 0.67 A at 170 VDC, 0.37 A at 300 VDC
  • 111 W at 120 VAC/300 VDC, 106 W at 277 VAC, 113 W at 170 VDC
  • Heavy duty, high temperature silicone rubber gaskets
  • Rugged and compact housing with superior thermal design translates to long luminaire life
  • Separate field wiring compartment with screw terminal block for easy and secure connection (can accept UL/CSA 26 to 10 AWG)
  • Thermal shock and impact resistant clear or frosted glass one piece lens with captive fasteners
  • Three lumen outputs provide up to 19500 Lumens with a choice of optics for optimal light distribution
  • Yoke bracket is designed to accommodate traditional Areamaster™ brackets and slipfitters for easy retrofit
Sub_Brand
Areamaster II
Type
Industrial
Voltage Rating
120-277Vac 50/60Hz, 170-300Vdc
