Burndy Burndy YA25LNT516
Burndy YA25LNT516
Kirby Risk #: 3293983
UPC: 78181001851, 781810018514, 00781810018514
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description
Cu compression narrow toungue std barrel-Code conductor, Single hole/W/ insp window, 1/0 AWG,600V-35Kv,5/16" stud, Pink, 12 index.
AD Description

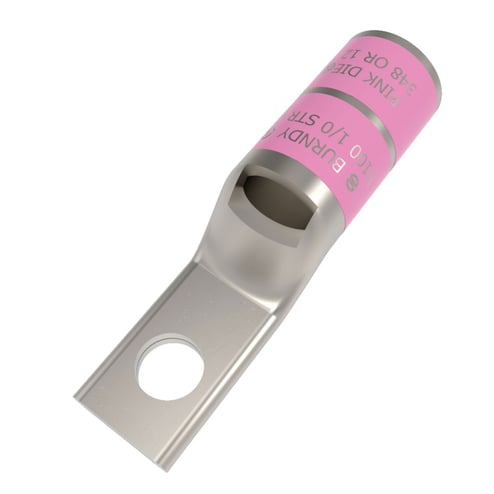

BURNDY® HYLUG YA25LNT516 YA-L-NT 1-Hole Compression Lug With Inspection Window, 1/0 AWG Solid/Stranded Copper Conductor, Die Code: 12, 5/16 in Stud, Copper
Vendor Description
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Specifications
| Application |
For Code Conductor
|
|---|---|
| Country of Origin |
US
|
| Length1 |
2.2800
|
| Material |
Copper
|
| Special Features |
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 15/16 IN, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Die Index: 12, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W25VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, X25RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U25RT Die, (1), Y46 Tool, U25RT Die With PUADP-1 Adapter, (1), Color Code: Pink, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (1), MRC840 Tool
|
| Standard |
UL 486A-486B
|
| Sub_Brand |
HYLUG
|
| Type |
YA-L-NT, Code Conductor Standard Barrel Narrow Tongue
|
| Voltage Rating |
35,000
|
