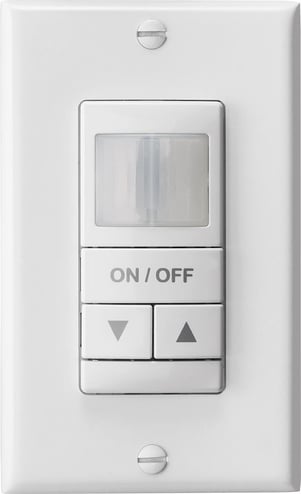

Lithonia Lighting Lithonia Lighting NWSX PDT LV DX WH


Description

Industry Description

nLight wall switch sensor, Dual Technology, Low Voltage, Occupancy controlled dimming without dimming output, White, SKU - 218HT3

Modified Industry Description

OCCUPANCY SENSOR

AD Description

Sensor Switch™ nLight Sensor Switch® NWSX PDT LV DX WH Low Voltage Wall Switch Occupancy Sensor, 120/277 VAC, PIR/Microphonics™ Dual Technology Sensor, 20 to 36 ft Coverage, Wall Mount

Vendor Description

The nWSX LV / nWSX PDT LV series nLight® wall switch occupancy sensor provides a simple control solution for a small room, in particular one utilizing nLight® enabled digital luminaires. Capable of detecting small motion up to 20 ft (6.10 m), this sensor is perfect for private offices, private rest rooms, copy rooms, closets or any small enclosed space. The nWSX LV uses Passive Infrared (PIR) detection while the nWSX PDT LV utilizes PIR/Microphonics Dual Technology (PDT). This stylish sensor can be programmed locally, via the front push-button(s) or remotely via the nLight® SensorView software. The nWSX LV/nWSX PDT LV includes an integrated photocell (inhibit only disabled by default).

Specifications

Application
Private Office
Color
White
Country of Origin
MX
Dimensions
2.74 in H x 1.68 in W x 1.63 in D
Environmental_Conditions
Indoor
Finish
Gloss
Lamp_Type
LED
Length1
3.0000
Material
Plastic
Mounting
Wall
Mounting_Type
Wall
Power_Rating
800/1200
Series
NWSX
Special Features

  • < 3 mA bus power consumption
  • 100% digital PIR detection, vandal resistant lens standard, includes wallplate (screwless sold separate)
  • Broadcasts occupancy, photocell and switch information over a local and/or global nLight channel
  • For indoor environment
  • Gloss finish
  • Multiple nWSX sensors or WallPods can be used in 3-way(or greater) configurations without traveler wires
  • Photocell standard (inhibit only - disabled by default) - not available in night light versions
  • Push button programmable, adjustable time delays, multiple operating modes
  • Raise/lower dim control
  • Remotely upgradeable firmware
  • Single gang switch box or low voltage ring mounting
  • Standard temperature range and humidity
Standard
cUL, UL
Temperature_Rating
0 to 60
Type
Low Voltage
Voltage Rating
120/277
Wattage
Not Applicable
