Cooper Wiring Cooper Wiring AH5969BK


Description

Industry Description

Conn 15A 125V 2P3W Str QuickGrip BK 4722875

AD Description

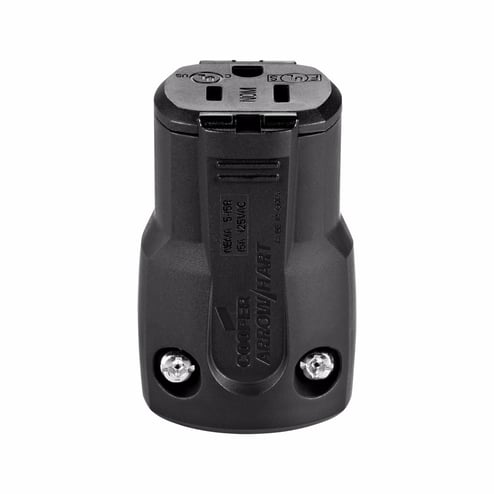

Eaton Wiring Devices Arrow Hart AH5969BK Quick Grip Grounding Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black

Vendor Description

Industrial specification grade straight blade plugs and connectors - QuickGrip NEMA 5-15, 2-poles/3-Wire. QuickGrip devices are designed to install quickly and easily and provide reliable performance in tough industrial environments. Quick grip plugs and connectors are designed for quick, secure installation and easy, long-lasting use. They feature rugged nylon construction and a roomy wiring chamber for fast and easy installation. Our scalloped ergonomic design provides a comfortable grip during installation and operation.

Specifications

Application
STRGHT BLADE PLG&CONNEC
Country of Origin
CN
Dimensions
1.6700 X 2.5900 X 1.4600
Length1
1.6700
Material
Nylon
Special Features

  • #8-32 steel, brass plated (hot) and nickel plated (neutral) terminal screw
  • #8-32 steel, zinc plated (green) ground screw
  • 0.031 in thick brass line contacts
  • 0.06 in thick brass blades
  • 1-piece hinged body reduces number of assembly screws to speed installation
  • 18 to 12 AWG terminal accommodation
  • Back wire
  • Brass ground contacts
  • Cable diameter ranges molded into removable cord grip inserts
  • Captive triple-drive screws (straight, phillips and Robertson) ease installation
  • Clear terminal cover and large, funneled wire entry ensures quick and accurate wiring
  • Max 30 deg C (86 deg F) after 250 cycles of overload at 200% of rated current (DC)
  • Nylon cord clamp
  • Nylon outer shell
  • Polycarbonate terminal retainer
  • Roomy wiring chamber for easy installation
  • Rugged nylon construction
  • Steel, zinc plated assembly/mounting screw
  • Steel, zinc plated terminal clamps
  • Twice the device rating 1000 VAC per UL498 dielectric voltage
Standard
cULus Listed,RoHS Compliant
Sub_Brand
Eaton Wiring Devices
Type
Industrial
