Stahlin Stahlin J604W

Industry Description

The Stahlin J Series product line was developed as an industrial enclosure for harsh, aggressive environments. Rugged design combined with tough, durable materials, for extreme reliability in tough environments.

Modified Industry Description

ENCL JIC 4X 6X4X4 FG W

AD Description

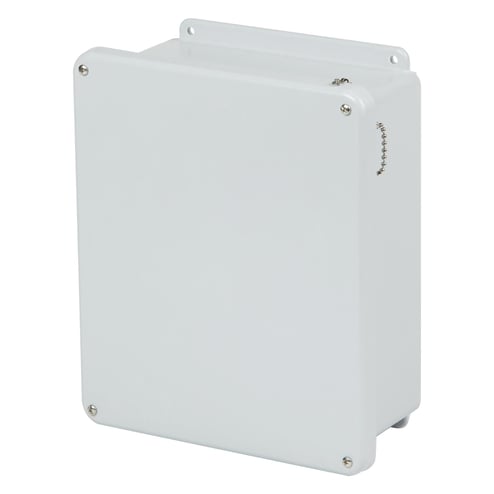

Robroy Stahlin J604W J Series W Configuration Enclosure With (4) Cover Screw, 6 in L x 4 in W x 4 in D, NEMA 1/3R/4X/6P/12 NEMA Rating, Fiberglass Reinforced Polyester

Vendor Description

The J series enclosures follow the original design of fiberglass enclosure products featuring a modest overhang cover on a flange mounted base. This simple but elegant concept offers unobstructed side walls, built in mounting capabilities and the strength characteristics associated with a protective wrap around cover that is hinged, latched or screwed down. Stahlin J series enclosures are designed for general electrical and electronic applications and any application that has associated environmental concerns. Simple in its design, the enclosure can be configured with cutouts, windows and modifications that make your finished product truly unique. J series products enhance any instrument installation. They accommodate standard back panel mounting but offer a range of panels, including an elevated dead front panel that is highly visible through a cover mounted window. If extra depth is required, the series offers a "raised cover" that increases depth by adding to the depth of the cover. This feature can be particularly effective with cover mounted components. There is a multitude of variations available in this simple but elegant design.
