Burndy Burndy BDCSHC142/01
Burndy BDCSHC142/01
Kirby Risk #: 3197164
UPC: 78181064616, 781810646168, 00781810646168
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description
Versipole, AWG 14-2/0 (Run), AWG 14-4 (Tap).
Modified Industry Description

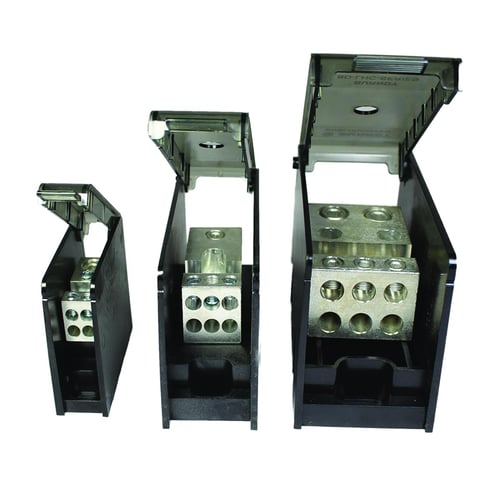

VersiPole Power Distribution Block 175 Amp 600 Volt Aluminum Alloy
AD Description
BURNDY® VERSI-POLE BDCSHC142/01 Type BDC Power Distribution Block, 600 VAC, 175 A, 1 Pole, 12 to 2/0 AWG, 14 to 4 AWG Wire, Aluminum Alloy
Vendor Description
These power distribution blocks are Listed to the power distribution block Standard UL 1953. They contain the same features and characteristics as the non-listed blocks however, these have spacing's that are suitable for installations in most industrial control panel feeder and branch circuits, HVAC systems and Wireways (with optional cover sold separately). They are available in one, two or three-pole configurations. An adder is also available with optional end barrier (sold separately), to allow user customized configurations.
Specifications
| Amperage Rating |
175
|
|---|---|
| Application |
VERSI-POLE Power Distribution Blocks are designed to provide modular solutions to power distribution applications.
|
| Country of Origin |
MX
|
| Dimensions |
3.08 in L x 1.05 in W x 2.81 in H
|
| Environmental_Conditions |
RoHS Compliant
|
| Finish |
Tin Plated
|
| Insulation |
True
|
| Length1 |
3.0800
|
| Material |
Aluminum Alloy
|
| Number_Of_Poles |
1
|
| Size |
2.91 X 2.25 X 2.81
|
| Special Features |
|
| Standard |
UL Listed and CSA Certified
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
194
|
| Type |
Type BDC
|
| Voltage Rating |
600
|
