Hubbell Hubbell HBL60W48
Hubbell HBL60W48
Kirby Risk #: 3179678
UPC: 78358545658, 783585456584, 00783585456584
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Watertight Series, Straight BladeReceptacle, 20A 250V, 2-Pole 3-Wire Grounding, NEMA 6-20R, Yellow
Modified Industry Description
20A 250V RECPT YELLOW WATERTIGHT
AD Description

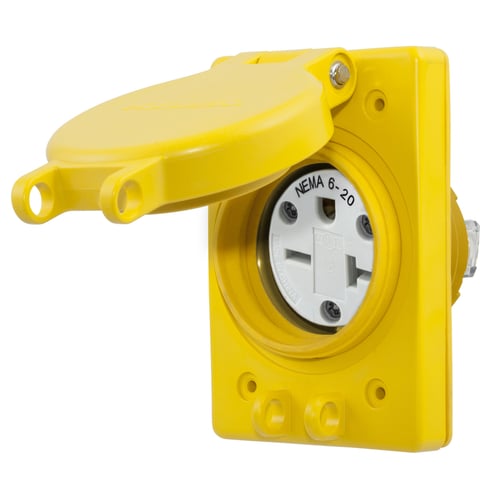

Wiring Device-Kellems HBL60W48 Standard Watertight Straight Blade Receptacle With Lift Cover, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Vendor Description
Hubbell Watertight receptacles with lift covers provide an impact resistant UL Type 4X seal combined with corrosion resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist Lock receptacles. The Watertight receptacles can either be mounted to FD/FS boxes or panel mounted to a flat surface. Combined, this makes a diversified product with the high quality needed in industrial, wet and wash down applications.
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Power Connection
|
| Color |
Yellow
|
| Connection |
Terminal Screws
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Length1 |
5.1680
|
| Material |
Composite
|
| Mounting |
Mounting Screws
|
| NEMA_Rating |
6-20R
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Series |
Watertight Devices
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL/CSA
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Receptacle
|
| Voltage Rating |
250
|
| Wattage |
5000
|
