Sensor Switch Sensor Switch NWSX PDT LV DX IV


Description

Industry Description

Wall Switch Sensor , Passive Dual Technology , Low Voltage, Occupancy controlled dimming without dimming output, Ivory, SKU - 218HUA

Modified Industry Description

WALL SWITCH SENSOR , PASSIVE DUAL

AD Description

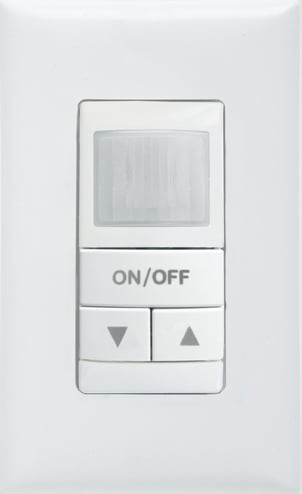

Sensor Switch™ nLight® NWSX PDT LV DX IV Low Voltage Occupancy Sensor, 120 to 277 VAC, Passive Infrared/Microphonics™ Dual Technology Sensor, Wall Mount

Vendor Description

The nWSX LV / nWSX PDT LV Series nLight™ wall switch occupancy sensor provides a simple control solution for a small room, in particular one utilizing nLight™ enabled digital luminaires. Capable of detecting small motion up to 20 ft (6.10 m), this sensor is perfect for private offices, private rest rooms, copy rooms, closets or any small enclosed space. The nWSX LV uses Passive Infrared (PIR) detection while the nWSX PDT LV utilizes PIR/Microphonics Dual Technology (PDT). This stylish sensor can be programmed locally, via the front push-button(s), or remotely via the nLight™ SensorView software. The nWSX LV/nWSX PDT LV includes an integrated photocell (disabled by default).

Specifications

Application
Private Office
Color
Ivory
Country of Origin
US
Dimensions
2.74 in H x 1.68 in W x 1.63 in D
Environmental_Conditions
Indoor
Finish
Gloss
Length1
0.625
Material
Plastic
Mounting
Wall
Mounting_Type
Wall
Series
NWSX PDT LV
Special Features

  • 100% digital PIR detection, vandal resistant lens standard, includes wall plate
  • Broadcasts occupancy, photocell, and switch information over a local and/or global nLight® channel
  • LED status indicator
  • Multiple nWSX sensors or wallpods can be used in 3 way (or greater) configurations without traveller wires
  • Occupancy controlled dimming operation
  • Photocell standard (disabled by default) prevents lights from initially turning on if sufficient daylight, but does not turn lights off, photocell not available in NightLight version
  • Push button programmable, adjustable time delays, multiple operating modes
  • Raise/lower dimming control
  • Remotely firmware upgradeable
  • Standard temperature/humidity
Standard
cUL, UL
Sub_Brand
Sensor Switch
Temperature_Rating
14 to 160
Type
Low Voltage
Voltage Rating
120 to 277
