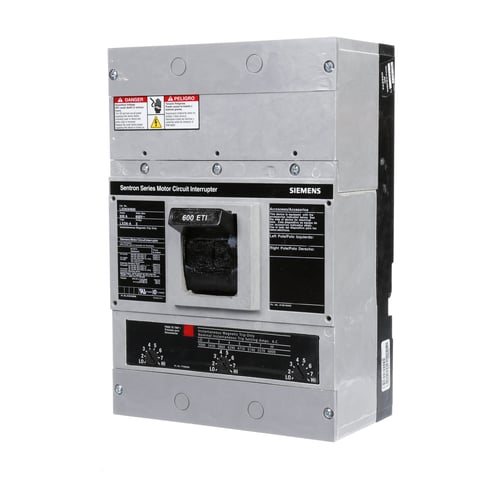

Siemens Siemens LXD63H600
Siemens LXD63H600
Kirby Risk #: 3160622
UPC: 78364321432, 783643214323, 00783643214323
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. HIGH INSTANTANEOUS RANGE ETI BREAKER LD FRAME WITH STANDARD BREAKINGCAPACITY AND NON INTERCHANGEABLE TRIP. MEETS UL 489 / IEC 60947-2 STANDARDS. 600A 3-POLE BREAKER (25KAIC AT 600V) (35KAIC AT 480V). SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.5 x 11 x 4.
Modified Industry Description
BREAKER LD 3P 600A 600V 25KA FX HI
AD Description
Siemens Sentron™ LXD63H600 Type LXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 600 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
600
|
| Application |
High Instantaneous Range ETI Breaker
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Dimensions |
6.7 in L x 8.8 in W x 14.5 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
LXD6
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Length1 |
14.5000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
600
|
