Industry Description

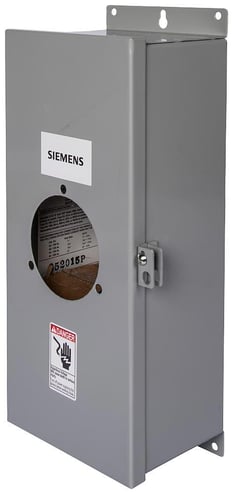

SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 200A 3-POLE 600V STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY (JXD63B200). NON-INTERCHANGEABLE TRIP UNIT.NEMA TYPE 1 ENCLOSURE SURFACE MOUNTED (J6N1). ORDER NEUTRAL (W60992). INCLUDES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL (CU) / 4/0AWG - 500KCMIL (AL). ENCLOSURE DIMENSIONS (W x H x D) IN 22.42 x 41.19 x 10.70.
Modified Industry Description
BREAKER ENC1S 3P 200A 600V 25KA FXD
AD Description
Sentron™ E1SJXD63B200 Type JXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 200 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
