Hubbell Hubbell HBL27W76
Hubbell HBL27W76
Kirby Risk #: 3155676
UPC: 78358513181, 783585131818, 00783585131818, 078358513183
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

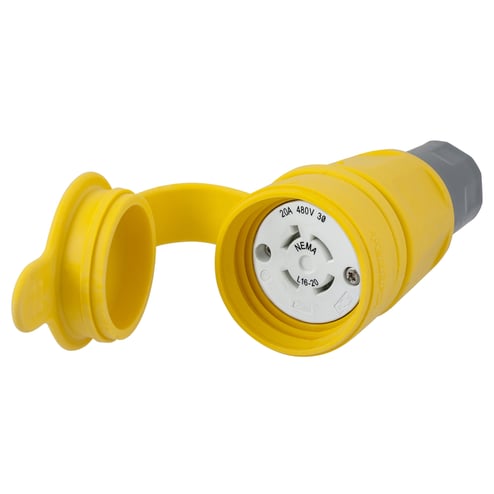

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Elastogrip,Female Connector Body, 20A 3-Phase Delta 480V AC, 3-Pole 4-WireGrounding, L16-20R, Screw Terminal, Yellow, Water/Dust-Tight Housing
Modified Industry Description
20A 480V CONN YELLOW WATER/DUST TIGHT
AD Description
Wiring Device-Kellems Twist-Lock® Elastogrip® HBL27W76 3-Phase Isolated Grounding Water/Dust-Tight Female Connector
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Conductor Range |
#14AWG - #12AWG
|
| Connection |
Terminal Screws
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Water Tight
|
| Material |
Elastomer/Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
L16-20R
|
| Number Of Conductors |
4-Wire Grounding
|
| Number_Of_Poles |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Elastomeric
|
| Voltage Rating |
480V
|
