Hubbell Hubbell GFRST82


Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacle, GFCI,Commercial Hospital Grade, Self Test, 15A 125V, 2-Pole 3-Wire Grounding,5-15R, Brown

Modified Industry Description

15A COM HG SELF TEST GFR BROWN

AD Description

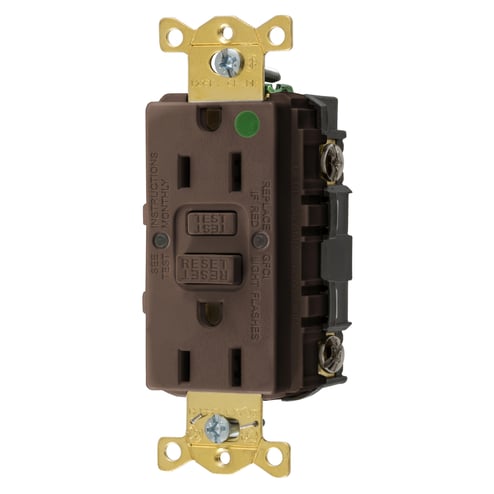

Wiring Device-Kellems AUTOGUARD® Style Line GFRST82 Decorator Duplex Self-Test Standard Straight Blade GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

Specifications

Amperage Rating
15
Application
Commercial Hospital Grade
Color
Brown
Connection
Screw Terminals
Conductor Size
#14 AWG to #12 AWG
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Length1
5.0480
Material
Composite
Mounting
Screw Mount
NEMA_Rating
5-15R
Number_Of_Poles
2
Phase
1
Series
Hospital Grade
Size
Standard Sized Product
Special Features

  • 0.025 sec trip time
  • 0.95 maximum humidity
  • 120 VAC, 10 to 15% voltage range
  • 14 to 10 AWG stranded or solid copper conductors only terminal accommodations
  • 15/20 A, 20 A feed thru amperage range
  • 4 to 6 mA trip level
  • Autoguard 10000 A maximum interrupting capacity
  • Flush thermoplastic face
  • Flush, nylon face, back and side wired, multiple drive screws and self-grounding staple
  • Green power indicator and red trip indicator
  • Internal backwire/back and side wired
  • Patented AUTOGUARD self-test technology
Standard
UL498, UL943
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Decorator Duplex
Voltage Rating
125V
Wattage
1,500
