Greenlee Greenlee CTF-EXTKIT


Description

Industry Description

Extended Mount Accessory Kit (52075795)

Modified Industry Description

EXTENDED MOUNT ACCESSORY KIT

AD Description

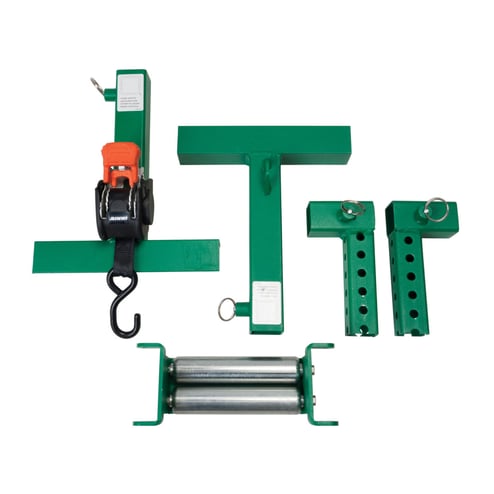

Greenlee® CTF-EXTKIT Extended Mount Accessory Kit, 200 lb Pulling Force, 2 to 4 in Roller Opening, For Use With CTF-200 Cable Tray Feeder

Specifications

Application
Used to provide a larger idler roller frame and to make the mounting legs adjustable of Cable Tray Feeder (CTF-200). Using this kit will allow the CTF-200 to feed cable in outer diameter size of 2'' (50.8 mm) up to 4'' (101.6 mm). The adjustable legs allow the feeder to be seated an additional 2'' (50.8 mm) above the tray compared to the standard legs of the CTF-200.
Country of Origin
US
Special Features

  • 2 - 4 in idler roller frame comes with 2 heavy duty conveyer rollers
  • Adjustable legs allow the feeder to be seated an additional 2 in above the tray compared to the standard legs of the CTF-200
  • Adjustable legs to fit onto tray width sizes of 18 to 36 in
  • Height of legs are adjustable by 1 inch increments
  • Idler roller - 9-5/8 in L x 3-7/8 in W x 3-1/2 in H
  • Legs - 10 in L x 5-3/4 in W x 16-1/2 in H
  • Over-Tray mounting systems allows cable to be placed in tray without taking up space
  • Quick attachment of adjustable legs and extended idler roller frame to CTF-200 using detained pins
  • Quick release system utilizes 360 deg swivel and no loose pieces to easily remove cable
