Thomas & Betts Thomas & Betts K655LR-L0330


Description

Industry Description

600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size kcmil Compressed/Stranded 500 or Compact/Solid 600 or mm2 Compact 250/300.

Modified Industry Description

EM K655LRL0330 600 AMP CONNECTOR

AD Description

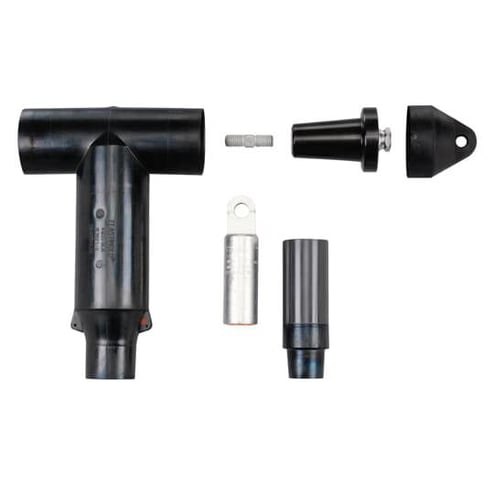

Elastimold® K655LR-L0330 Deadbreak Elbow Connector With Insulated Plug and Cap and Stud and Lug and Cable Adapter, 15/25 kV, 600 A, 500 to 600 kcmil Conductor, 1.18 to 1.465 in Dia Insulation, EPDM Rubber

Vendor Description

600 series dead break elbows, straight receptacles, junctions, vault stretchers and accessories are used to connect equipment and cable on primary feeder and network circuits. Designs accommodate large conductors and feature bolted connections and dead front modular construction for maximum reliability, performance and versatility. De-energized connectors can be quickly and easily connected and disconnected using standard hand tools and equipment in accordance with accepted operating practices. Optional accessories allow visible external separation, by-pass, isolation, dead ending, grounding and testing as well as adding taps, surge arresters and circuit protection.

Specifications

Amperage Rating
600
Application
Designed to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus.
Color
Black
Conductor Type
Compressed Stranded/Compacted Solid Universal Aluminum
Conductor Size
500 to 600
Country of Origin
US
Dimensions
13 in L x 10.36 in W
Environmental_Conditions
Fully Submersible
Insulation
Yes, EPDM Rubber
Length1
14.0000
Material
EPDM Rubber
Series
K655LR
Size
Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
Special Features

  • 100% peroxide cured construction includes insulation and conductive EPDM materials
  • Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state
  • Fully shielded, fully submersible molded rubber housing
  • Without test point
Standard
ANSI/IEEE Standard 386
Temperature_Rating
-40 to +65 C
Type
Deadbreak Elbow Connector
Voltage Rating
15/25
