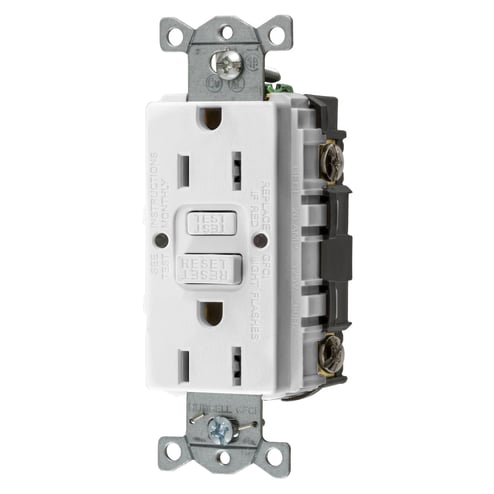

Hubbell Hubbell GFRST15W


Description

Industry Description

Hubbell Wiring Device Kellems, Power Protection Devices, Receptacle,Self Test, GFCI, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, White

Modified Industry Description

15A 125V WHITE SELF TEST GFCI RECEPTACLE , COMMERCIAL GRADE

AD Description

Bryant Electric CIRCUITPRO® GFRST15W 1-Phase Decorator Duplex Grounding Heavy Duty Self-Test Standard GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White

Vendor Description

Bryant CIRCUITPRO® GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto monitoring is conducted continuously within every 30 s. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.

Specifications

Amperage Rating
15
Application
Commercial Grade
Brand Name
Hubbell
Color
White
Connection
Back and Side Wired Terminal Screws
Conductor Size
#14 AWG to #12 AWG
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Frequency_Rating
60
Grade
Commercial
Material
Thermoplastic
Mounting
Mounting Screws
NEMA_Rating
5-15R
Number_Of_Poles
2
Number_Of_Wires
3
Phase
Single Phase
Size
Standard Sized Product
Special Features

  • Brass power contacts and ground contacts
  • Flush face
  • High impact and ultraviolet-resistant construction provides resilience in harsh environments
  • Installation ease, lower labor cost with auto-grounding clip, captive mounting screws and single tab breakoff ears and full breakoff for OEM raised covers
  • Internal back wiring clamp and guide for quick and secure termination
  • Night light option includes light sensor controls for automatic on and off, custom dual lens for optimum light output
  • Nylon base and face, brass power and ground contacts
  • Patented autoguard self test technology
  • Patented AUTOGUARD self-test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
  • Patented CIRCUITPRO® self-test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
  • Protection against line and load reversal - no power to the face or downstream receptacles if device is miswired
  • Terminal screws connection
  • Triple wipe construction
  • Zinc plated steel mounting strap and mounting screws
Standard
Meets All NEC® Requirements
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-35 to 66
Type
Grounding Self-Test
Voltage Rating
125
Wattage
1,500
