Hubbell Hubbell HBL28W48
Hubbell HBL28W48
Kirby Risk #: 3137754
UPC: 78358513144, 783585131443, 00783585131443
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Elastogrip,Male Plug, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P, Screw Terminal,Yellow, Water/Dust-Tight Housing
Modified Industry Description
30A 250V MALE YELLOW WATER/DUST TIGHT
AD Description

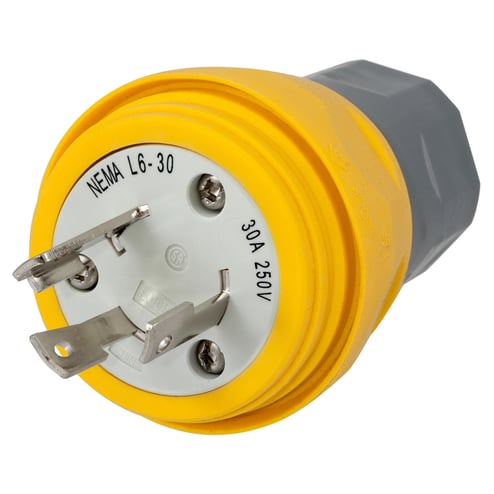

Wiring Device-Kellems Twist-Lock® Elastogrip® HBL28W48 Grounding Male Portable Water/Dust Tight Standard Sized Locking Plug, 250 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Connection |
Screw Terminals
|
| Conductor Size |
#12AWG to #10AWG
|
| Cord_Type |
All Portable
|
| Country of Origin |
CN
|
| Enclosure |
NEMA 4/4X/12/6/6P
|
| Environmental_Conditions |
Watertight
|
| Grade |
Commercial/Industrial
|
| Material |
Elastomeric/Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
L6-30P
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
Meets NEMA WD-1, WD-6 And ANSI Standards
|
| Sub_Brand |
Twist-Lock
|
| Temperature_Rating |
-40 to 60
|
| Type |
Plugs
|
| Voltage Rating |
250 V
|
