Burndy Burndy YA36L2TC38FX
Burndy YA36L2TC38FX
Kirby Risk #: 3134351
UPC: 78181015040, 781810150405, 00781810150405
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description
Cu Tubing Hylug, 2 Holes with Inspection Window, 450 kcmil Flex, 600V-35kV, 3/8" stud, Standard, Compression, 0.40 in BCD, Brown.
Modified Industry Description
CU COMPR LUG 2 HOLE 450 AWG 3/8 STUD SHORT
AD Description

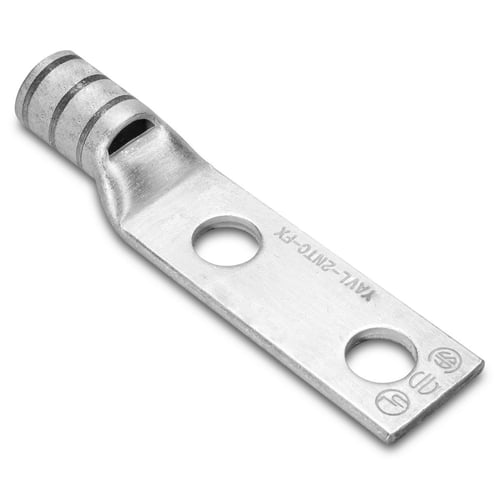

BURNDY® HYLUG YA36L2TC38FX YA-L-2TC-FX 2-Hole Compression Lug With Inspection Window, 450 kcmil, Die Code: 20/299, 3/8 in Stud, Copper
Vendor Description
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Specifications
| Application |
For Flex Conductor
|
|---|---|
| Color |
Brown
|
| Conductor Size |
450
|
| Country of Origin |
US
|
| Finish |
Tin Plated
|
| Length1 |
4.2400
|
| Material |
Copper
|
| Series |
YA-L-2TC-FX
|
| Special Features |
|
| Standard |
UL Listed, CSA Certified, ROHS Compatible
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
90
|
| Type |
2-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
