Siemens Siemens WXB1600N
Siemens WXB1600N
Kirby Risk #: 3133658
UPC: 88762103118, 887621031183, 00887621031183
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
Siemens Low Voltage s Multi-Family Metering Line of Power Mod WBX Breakers as part of the Power Mod WBX Breakers Group. Type CROSS BUS MAIN MODULE Appn MAIN BREAKER WITH BUS CONNECTION Std UL 67 V. Rating 120/240V A. Rating 600A Phase 1PH No. Of Cutouts 0 Cable Entry SUBFEED Terminal QUICK CONNECT. Insulated. Mountingrails. Enclosure NEMA TYPE 3R
Modified Industry Description
POWMOD WXB 1P 600A 65K AIC
AD Description

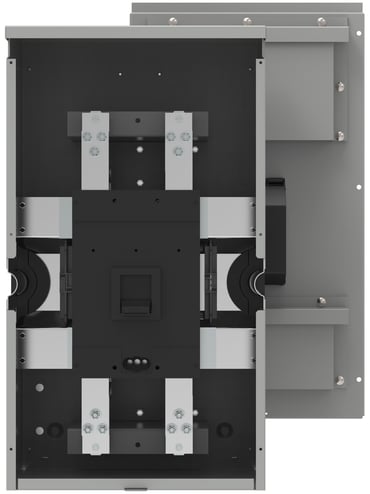

Siemens Power Mod™ WXB1600N Type WXB Insulated Low Voltage Thru Bus Sub Feed Cross Bus Main Module, 120/240 VAC, 600 A, 1 ph Phase
Vendor Description
Cross bus main modules (type WXB) offer two distinct functions, first they can be used to connect Siemens Sentron™ busway to a power Mod™ line-up. Second they can be utilized to offer lower service disconnect ampacities or unique configurations where an incoming tapbox is preferred.
Specifications
| Amperage Rating |
65000
|
|---|---|
| Application |
BUSMAINDISCONNECTFORMODULARMETERING
|
| Connection |
SIEMENSQuickConnect
|
| Country of Origin |
US
|
| Enclosure |
NEMA3R
|
| Length1 |
11.0000
|
| Mounting |
SIEMENSQuickRoll
|
| Phase |
1
|
| Special Features |
|
| Standard |
UL67
|
| Sub_Brand |
POWERMOD
|
| Type |
600ALXD6FRAMECIRCUITBREAKER(LXD63B600)
|
| Voltage Rating |
120
|
