Appleton Appleton N2LED2T1


Description

Industry Description

Emergency Light Fixture, Type LED, Constructional Feature Dust/Corrosion Resistant, Voltage Rating 120 to 277 VAC at 50/60 Hz, Wattage 3 W, Number of Fixtures 2, Lamp Included Yes, Material Fiberglass Reinforced Polyester, Mounting Direct, Enclosure Class I Div 2 Group A B C D, Class I Zone 2 Group IIC, NEMA IP66/4X, Approval UL 1598A, CSA C22.2, Hub Size 3/4 Inch, Top Entry Size 1-3/4 Inch NPT, Weight 7.2 Lb, With Enclosed and Gasketed

AD Description

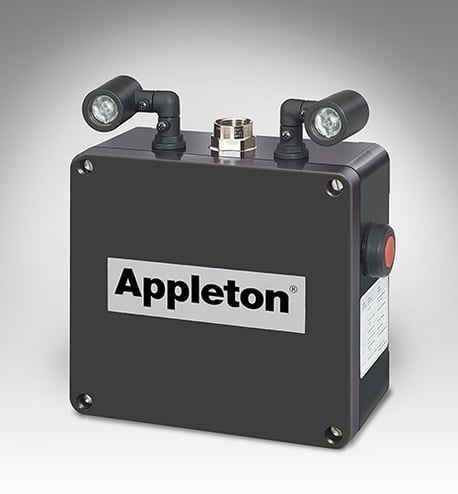

Appleton® Viamaster™ N2LED2T1 Emergency Lighting System, LED Lamp, 120 to 277 VAC, Polyester

Vendor Description

Appleton Viamaster™ LED series luminaires are designed for simple installation and maintenance - whether specified for new construction or retrofitted as a more reliable and efficient replacement for fluorescent fixtures. They are available in multiple voltages, lumen outputs and mounting styles to suit practically any hazardous location installation.

Specifications

Country of Origin
CA
Length1
13.2000
Special Features

  • 3/4 in hub
  • Capacity is sufficient for the connection of 6 output watts
  • Constructional feature dust/corrosion-resistant
  • During emergency operation, the battery is automatically protected from deep discharge damage by a low voltage battery disconnect (LVD) circuit, upon restoration of normal power, the charger brings the battery to full capacity within acceptable UL time standards
  • Fiberglass reinforced polyester body and push to test switch, continuous silicone cover gasket, nickel plated brass hub, stainless steel cover screws, aluminum lampheads
  • Provides 100% lumen output for 90 minutes of operation with four light heads or 180 minutes of operation with two light heads
  • Remote lamp head assemblies (one or two) are available for mounting of lampheads away from main power supply system
  • System supports 4 light heads in any main/remote combination utilizing up to 6 Watts of output power
  • The electronics consist of a solid state charger, transfer circuit and low voltage battery disconnect circuit
  • The solid state charger maintains maintenance-free NiCd battery at full charge, upon power failure or utility voltage (AC) below 50 V, the DC emergency lighting load is connected to the battery
  • This allows for a main unit without any light heads to drive up to 4 remote units or any other combination of 4 lights
