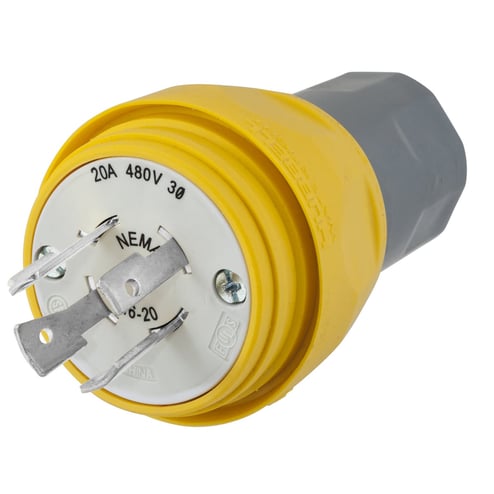

Hubbell Hubbell HBL26W76


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock,Elastogrip,Male Plug, 20A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, L16-20P, Screw Terminal, Yellow, Water/Dust-Tight Housing

Modified Industry Description

20A 480V MALE YELLOW WATER/DUST TIGHT

AD Description

Wiring Device-Kellems Twist-Lock® HBL26W76 Non-Shrouded Watertight Locking Plug, 480 VAC, 20 A, 3 Poles, 4 Wires, Yellow

Specifications

Amperage Rating
20
Application
Industrial/Commercial
Brand Name
Hubbell
Color
Yellow
Connection
Screw Terminals
Conductor Size
#14AWG to #12AWG
Cord_Type
All Portable
Country of Origin
CN
Enclosure
NEMA 4/4X/12/6/6P/IP65/IP66/IP67
Environmental_Conditions
Watertight
Grade
Industrial
Material
Thermoplastic Elastomer
Mounting
Cord Mounted
NEMA_Rating
NEMA L16-20P
Number_Of_Poles
3
Number_Of_Wires
4
Phase
3
Size
Standard Sized
Special Features

  • 3-phase
  • 30 deg maximum at rated current temperature rise
  • 3500 VAC minimum withstand dielectric voltage
  • All exposed materials are UV stabilized
  • Black elastomeric bushing and cone seal
  • Clear polycarbonate terminal retainer material
  • Nickel plated brass blades
  • Nickel plated brass terminal screw
  • Nylon gotcha ring
  • PBT strain relief nut
  • Rated for current interruption per UL498
  • Smooth body design minimizes collection points simplifying the wash down process
  • Stainless steel hardware and corrosion-resistant connection points
  • Strain relief nut always seals on the body, minimizing debris collection
  • White nylon blade holder
  • White nylon core
Standard
UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 60
Type
Non-Shrouded Watertight
Voltage Rating
480
