Hubbell Hubbell HBL26W75
Hubbell HBL26W75
Kirby Risk #: 3111147
UPC: 78358513163, 783585131634, 00783585131634
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Elastogrip,Male Plug, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, L15-20P, ScrewTerminal, Yellow, Water/Dust-Tight Housing
Modified Industry Description
20A 250V MALE YELLOW WATER/DUST TIGHT
AD Description

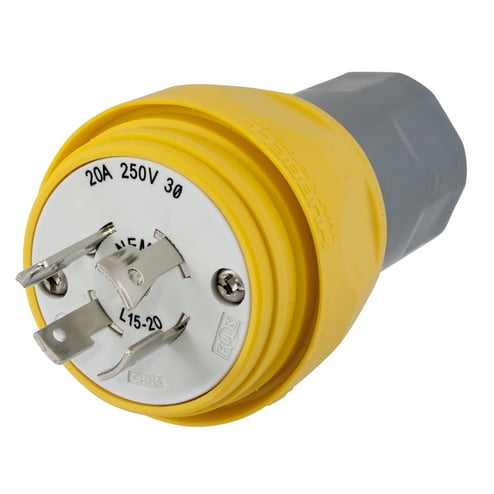

Wiring Device-Kellems Twist-Lock® HBL26W75 Non-Shrouded Watertight Locking Plug, 250 VAC, 20 A, 3 Poles, 4 Wires, Yellow
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Industrial/Commercial
|
| Color |
Yellow
|
| Connection |
Screw Terminals
|
| Conductor Size |
#14AWG to #12AWG
|
| Country of Origin |
PR
|
| Dimensions |
2.51 in Dia X 3.96 in L
|
| Enclosure |
NEMA 4/4X/12/6/6P/IP65/IP66/IP67
|
| Environmental_Conditions |
Watertight
|
| Horsepower |
3
|
| Length1 |
13.5000
|
| Material |
Thermoplastic Elastomer
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
NEMA L15-20P
|
| Number_Of_Poles |
3
|
| Phase |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 60
|
| Type |
Non-Shrouded Watertight
|
| Voltage Rating |
250
|
