Hubbell Hubbell HBL67W75
Hubbell HBL67W75
Kirby Risk #: 3111146
UPC: 78358543318, 783585433189, 00783585433189
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Watertight Series, Locking Receptacle,20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-20R, Yellow
Modified Industry Description
WATERTIGHT RECEP ASSY,NEMA L15-20
AD Description

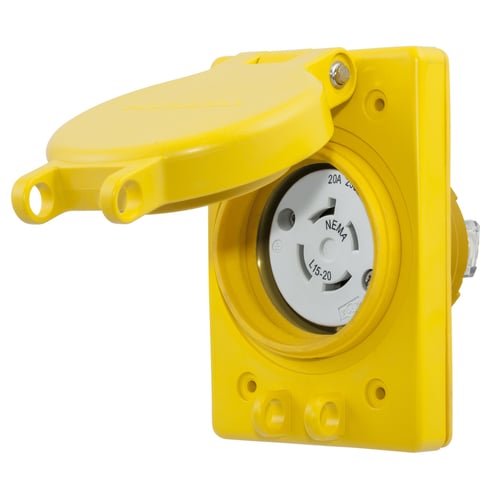

Wiring Device-Kellems Twist-Lock® HBL67W75 3-Phase Grounding Single Standard Watertight Locking Receptacle With Lift Cover, 250 VAC, 20 A, 3 Poles, 4 Wires, Yellow
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Industrial/Commercial
|
| Color |
Yellow
|
| Connection |
Screw Terminals
|
| Conductor Size |
#14 AWG to #10 AWG
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Watertight
|
| Length1 |
5.1680
|
| Material |
Elastomer/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
L15-20R
|
| Number_Of_Poles |
3
|
| Phase |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Single
|
| Voltage Rating |
250V AC
|
| Wattage |
2500
|
