Hubbell Hubbell HBL15W33A
Hubbell HBL15W33A
Kirby Risk #: 3110449
UPC: 78358513126, 783585131269, 00783585131269
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

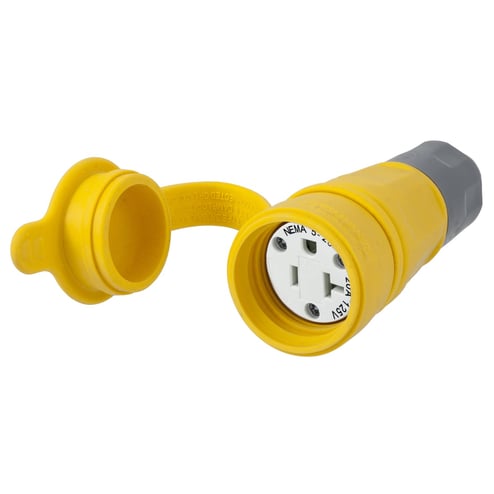

Hubbell Wiring Device Kellems, Straight Blade Devices, WatertightSeries, Female Connector, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R,Yellow, Version 2
Modified Industry Description
20 A 125V 2 POLE 3 WIRE GROUNDING 5 20R YELLOW FEMALE CONNECTOR BODY
AD Description
Wiring Device-Kellems HBL15W33A Female Standard Sized Watertight Straight Blade Connector, 125 VAC, 20 A, 2 Poles
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Conductor Range |
#14AWG - #12AWG
|
| Connection |
Terminal Screws
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Water Tight
|
| Insulation |
Insulated Body
|
| Material |
Elastomer/Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
5-20R
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL498
|
| Sub_Brand |
Straight Blade Devices
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Elastomeric
|
| Voltage Rating |
125
|
