Hubbell Hubbell HBL69W75
Hubbell HBL69W75
Kirby Risk #: 3104570
UPC: 78358543328, 783585433288, 00783585433288
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Watertight Series, Locking Receptacle,30A 3-Phase 250V, 3-Pole 4-Wire Grounding, NEMA L15-30R, Yellow
Modified Industry Description
30A 250V RECPT YELLOW WATERTIGHT
AD Description

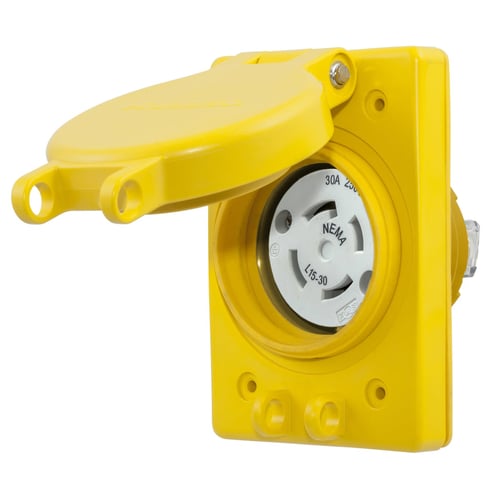

Wiring Device-Kellems Twist-Lock® HBL69W75 Grounding Standard Single Watertight Locking Receptacle With Lift Cover, 250 VAC, 30 A, 3 Poles, 4 Wires, Yellow
Vendor Description
Hubbell watertight receptacles with lift covers provide an impact-resistant UL type 4X seal combined with corrosion-resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock® receptacles. The watertight receptacles can either be mounted to FD/FS boxes or panel mounted to a flat surface.
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Industrial/Commercial
|
| Color |
Yellow
|
| Connection |
Screw Terminals
|
| Conductor Size |
#14 AWG to #10 AWG
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Watertight
|
| Length1 |
5.1680
|
| Material |
Elastomer/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
L15-30R
|
| Number_Of_Poles |
3
|
| Phase |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Single
|
| Voltage Rating |
250V AC
|
| Wattage |
7500
|
