Hubbell Hubbell HBL15W47A
Hubbell HBL15W47A
Kirby Risk #: 3100314
UPC: 78358513127, 783585131276, 00783585131276
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

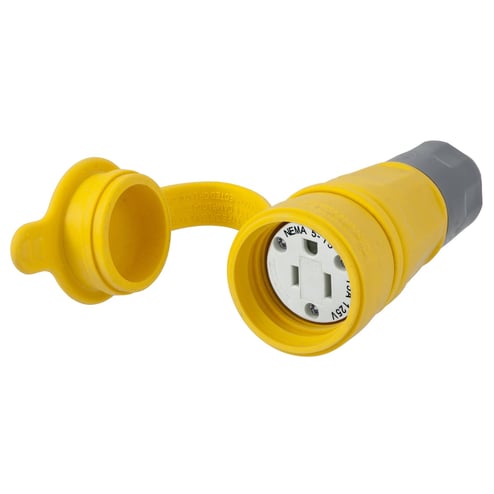

Hubbell Wiring Device Kellems, Straight Blade Devices, WatertightSeries, Female Connector, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R,Yellow, Version 2
Modified Industry Description
15A 125V - YELLOW ELASTO GRIP WATERTIGHT FEMALE CONNECTOR BODY, 2 POLE, 3 WIRE
AD Description
Wiring Device-Kellems HBL15W47A Female Grounding Insulated Watertight Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Watertight Device
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Conductor Range |
#14AWG - #12AWG
|
| Connection |
Terminal Screws
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Water Tight
|
| Insulation |
Insulated Body
|
| Material |
Elastomer/Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
5-15R
|
| NEMA_Rating |
5-15R
|
| Number Of Conductors |
3
|
| Number_Of_Poles |
2
|
| Phase |
1PH
|
| Poles |
2
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75/-25 to 75
|
| Type |
Elastomeric
|
| Voltage Rating |
125
|
