Siemens Siemens Q120DF


Description

Industry Description

BRKR AFCI/GFCI 20A 1P 120V 10K Plug-in

Modified Industry Description

20A QFGA 1 POLE AFCI/GFCI DUAL FUNCTION BREAKER

AD Description

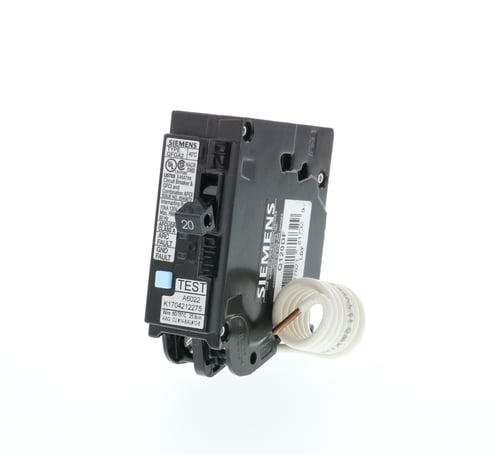

Siemens Q120DF Type QFGA2 AFCI/GFCI Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Vendor Description

The dual function circuit breaker combines GFCI and AFCI, protecting against both arc faults and ground faults. This, along with the new self-test and lockout feature, makes it the first in class in electrical safety for homeowners.

Specifications

Actuator
N/A
Amperage Rating
20
Brand Name
Siemens
Connection
PLUG-IN
Country of Origin
PH
Frame
QFGA2
Frequency_Rating
TRUE
Interrupt_Rating
10 AIC
Number_Of_Poles
1
Operating_Temperature
N/A
Phase
1
Special Features

  • 14 to 8 AWG copper, 12 to 8 AWG aluminum wire
  • Autonomously and continuously tests itself for device malfunction
  • Combination arc fault circuit interrupter and class a 5 mA ground fault circuit interrupter
  • Cost savings and lower cost than purchasing both a GFCI and AFCI
  • Fast installation and easier to install one device than two
  • Long time and instantaneous trip functions
  • Self-test and lockout feature
  • Smaller device and combines two state-of-the art technologies into one small device
  • Trips and locks the device when protection has been compromised
Standard
UL
Sub_Brand
Siemens
Trip_range
Thermal Magnetic
Trip_Type
Thermal Magnetic
Type
QFGA2
Voltage Rating
120
Width_2
3.0000
Width_3
40.0000
