Intermatic Intermatic IG2240-IMS


Description

Modified Industry Description

SPD BASE UNIT

AD Description

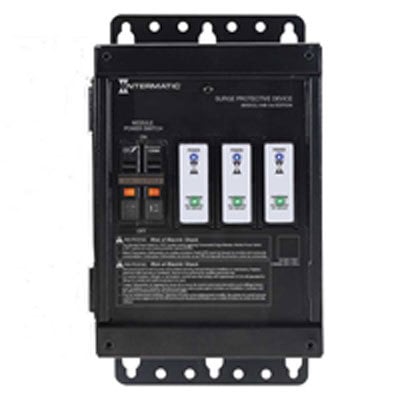

Intermatic® IG2240-IMS IG2200 Type 1/2 Surge Protective Device With Consumable Module, 120/240 VAC, 50/60 Hz, 10 kA SCCR, 1 Phase

Vendor Description

The IG2200 Series Surge Protective Devices with Consumable Modules utilizing TPMOV® technology can be easily and safely replaced by the end user as needed. No longer does the entire hardwired unit need to be replaced once the TPMOV® has been sacrificed. The IG 2200 Series has been designed for a variety of Type 1 and Type 2 applications. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances.

Specifications

Brand Name
Intermatic
Country of Origin
MX
Environmental_Conditions
-35 to 85 deg C Operating Temperature
Frequency_Rating
50/60
Material
Steel
Mounting
10 Gauge
Nominal_Discharge_Current
10
Operating_Temperature
-35C to 60C
Phase
1
Short_Circuit_Rating
10kA
Size
3.75X7.125X1.25
Special Features

  • 6-mode of protection
  • Green and blue LED indicator
  • Maintain active protection with replaceable consumable modules
  • Module power switch (on select models) for convenient disconnect from power source for consumable module replacement
  • Power and status LED indicator lights
  • Replaceable consumable modules
  • Status and protection LED indicators
  • Tamper proof consumable module door
  • Type 1 applications include outdoor installations before service entrances and utility meter cabinets, type 2 applications include installations after service entrances
Standard
cULus Listed, ANSI/UL1449 3rd Edition
Sub_Brand
Intermatic
Type_Of_Indicators
Green & Blue Led
Type
Surge Protective Device
Voltage Rating
120/240
