Thomas & Betts Thomas & Betts X28


Description

Industry Description

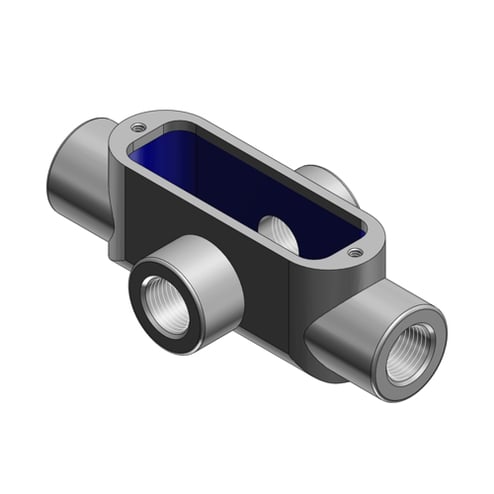

BlueKote Form 8, (X) 3/4 Inch Conduit Body, Body Material Gray Iron with Zinc Plating and Baked on Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit

Modified Industry Description

3/4 IN CONDUIT BODY IRON X F-8

AD Description

T&B® X28 35 Series Type X Conduit Body, 3/4 in Hub, Form 8 Form, 9 cu-in Capacity, Gray Iron, Zinc Plated with Epoxy Powder Coated

Specifications

Application
Conduit bodies are installed in conduit systems to connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors.
Country of Origin
CN
Finish
Zinc Plated with Epoxy Powder Coat
Length1
8.2500
Material
Gray Iron
Special Features

  • Bluekote® Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • T and b form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton® form 7 bodies and covers
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
Standard
UL E2969
Sub_Brand
Thomas & Betts
Type
Form 8 Conduit Body
