Thomas & Betts Thomas & Betts RC864


Description

Industry Description

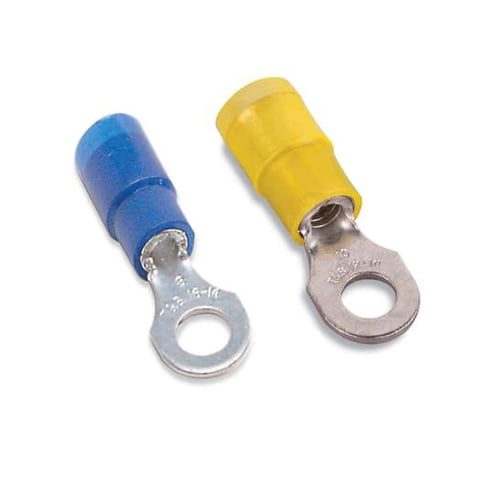

Nylon Insulated Expanded Entry Ring Terminal, Length 1.00 Inches, Width .37 Inches, Maximum Insulation .210, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack

Modified Industry Description

EXP INS NYL RING TERM, 12-10, #8, Y

AD Description

Sta-Kon® RC864 RC Series Expanded Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.1 in L, Insulation Grip Sleeve Barrel, Copper, Yellow

Vendor Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

Specifications

Color
Yellow
Conductor Size
12 to 10
Country of Origin
US
Finish
Tin Plated
Length1
1.1
Material
Copper
Series
RC Series
Special Features

  • 500 pieces/pack
  • An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
  • Expanded entry
  • Made of copper and has electro-tin plating for high conductivity/corrosion resistance
  • Suffix X indicate an expanded insulation grip, means a wider wire entry to accommodate heavy wall insulation, nylon insulated, Self-insulated with high dielectric strength nylon sleeves
Standard
UL E9809
Sub_Brand
Sta-Kon
Temperature_Rating
105
Type
Expanded Insulated
Voltage Rating
600
