Thomas & Betts Thomas & Betts LL200M


Description

Industry Description

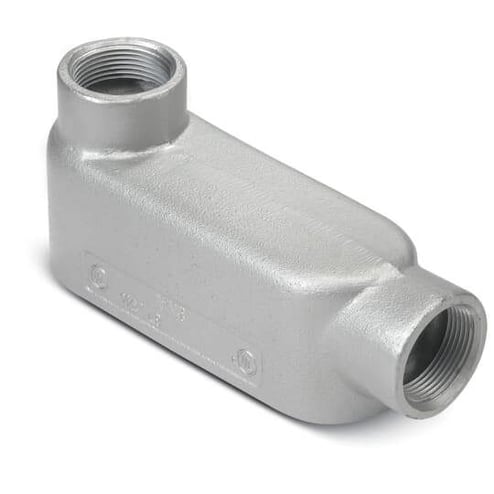

Series 35 Left Side Opening 2 Inch Conduit Body, Body Material Malleable Iron, Finish Zinc Plating with an Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit

Modified Industry Description

2 INCHSERIES 35 CONDUIT BODY

AD Description

T&B® LL200M 35 Series Type LL Conduit Body, 2 in Hub, 68 cu-in Capacity, Malleable Iron, Zinc Plated with Aluminum Acrylic Coated

Specifications

Application
To Connect Conduit Sections
Country of Origin
CN
Finish
Zinc Plating with Aluminum Acrylic Coating
Length1
10.7500
Material
Malleable Malleable
Special Features

  • Act as mounting outlets for wiring devices and lighting fixtures
  • Covers available in iron or stamped steel, both zinc plated and supplied with stainless steel captive screws
  • Features tapered, threaded NPT hubs
  • Left side opening
  • Make 90 deg bends in conduit runs
  • Make 90 degree bends in conduit runs
  • Provide access to conductors for maintenance and future system changes
  • Provide easy access for splices in branch conductors
  • Serve as pulling outlets during conductor installation
  • Suitable for use in concrete
  • Zinc plated iron construction with aluminum acrylic coating provides durability, impact resistance and corrosion resistance
  • Zinc plated iron construction with aluminum acrylic coating provides durability, impact-resistant and corrosion-resistance
Standard
UL E2969
Sub_Brand
Thomas & Betts
Type
Series 35 Conduit Body
