Thomas & Betts Thomas & Betts A481
Thomas & Betts A481
Kirby Risk #: 3085556
UPC: 78621080866, 786210808666, 00786210808666, 30786210808667
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

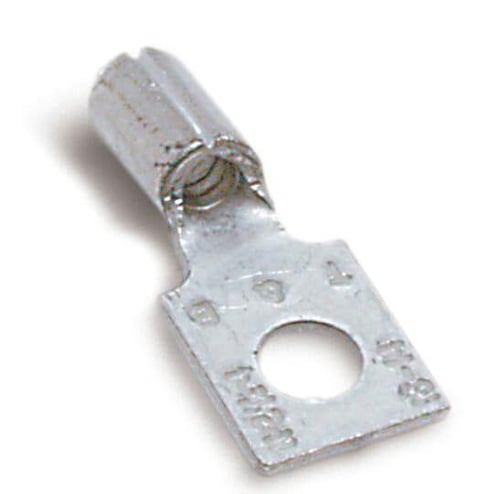

Non-Insualted Rectangular Ring Terminal, Length .96 Inches, Width .302 Inches, Bolt Hole #6, Wire Range #22-#18 AWG, Copper, Tin Plated
Modified Industry Description
NON-INS RECT RING TERM, 22-18, #6,
AD Description
Sta-Kon® A481 A Series Non-Insulated Ring Terminal, 22 to 18 AWG Conductor, 0.96 in L, Brazed/Overlapped Seam Barrel, Copper, Metallic
Vendor Description
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Color |
Metallic
|
|---|---|
| Conductor Size |
22 to 18
|
| Country of Origin |
US
|
| Finish |
Tin Plated
|
| Length1 |
0.96
|
| Material |
Copper
|
| Series |
A Series
|
| Special Features |
|
| Standard |
UL E9809
|
| Sub_Brand |
Sta-Kon
|
| Temperature_Rating |
150
|
| Type |
Non-Insulated
|
| Voltage Rating |
600
|
