Thomas & Betts Thomas & Betts 54915BEPH


Description

Industry Description

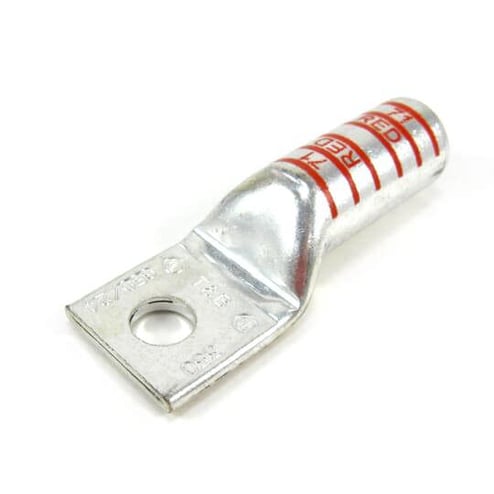

Copper One-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size 350 kcmil, 1/2 Inch Bolt Size, Tin Plated, Die Code 71, Die Color Code Red

Modified Industry Description

54915BE WITH PEEP HOLE

AD Description

Color-Keyed® 54915BEPH 54900 1-Hole Compression Connector Lug With Peep Hole, 350 kcmil Copper Conductor, Die Code: 71, 1/2 in Stud, Copper

Vendor Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Specifications

Color
Red
Conductor Type
Copper
Conductor Size
350
Country of Origin
MX
Insulation
None
Length1
4.0000
Material
Copper
Series
54900
Special Features

  • Color-Keyed® connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
  • Connection by compression
  • Connectors have colored bands or colored dots that correspond to color markings on the dies
  • High conductivity wrought copper construction
  • High quality connection at a low installed cost
Standard
UL E9809
Sub_Brand
Color-Keyed
Type
1-Hole
Voltage Rating
600 VAC to 35 kV
