Thomas & Betts Thomas & Betts PAC79


Description

Industry Description

Aluminum Type PAC - Aluminum Parallel Groove Clamp with Cast Copper Liner for Wire Range Main: 336.4-1/0, 1/0-6 AR ASCR 400-2/0 Str., 1/0-6 AR AL/CU, Tap: ASCR 1/0 Str.-8 Sol. ALCU, Prefilled with Oxide Inhibitor.

Modified Industry Description

PARGRV CLAMP

AD Description

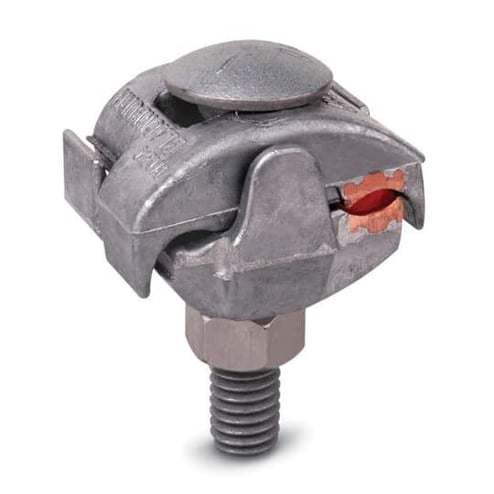

Blackburn® PAC79 2-Conductor Type PAC Parallel Groove Clamp With Cast Copper Liner, ACSR/Aluminum/Copper/Solid/Stranded Conductor, 1/0 AWG to 336.4 kcmil, 6 to 1/0 AWG Main/Run, 8 to 1/0 AWG Tap, Aluminum

Vendor Description

Blackburn® cast, forged, or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of U.L. and C.S.A. certified solutions for your electrical interface needs.

Specifications

Application
Securing Conductors
Conductor Type
ACSR/Aluminum/Copper/Solid/Stranded
Connection
Bolted
Country of Origin
IN
Dimensions
1-5/8 in L x 1-7/8 in W x 2-15/32 in H
Environmental_Conditions
All Seasons / Conditions
Insulation
None
Length1
7.2500
Material
Aluminum
Mounting
None
Number Of Conductors
2
Size
Height 2-15/32 X Length 1-5/8 X Width 1-7/8 inch
Special Features

  • 1/0 AWG stranded to 8 AWG solid tap conductor range for aluminum
  • 1/0 AWG to 336.4 kcmil, 6 to 1/0 AWG AR main conductor range ACSR, 1/0 AWG to 400 kcmil stranded, 6 to 1/0 AWG AR main conductor range for aluminum/copper
  • All seasons environmental conditions
  • Bolted connection
  • Clamp separates conductors to reduce the possibility of galvanic corrosion
  • Most corrosion-resistant groove clamp ever
  • Prefilled with oxide-inhibitor to prevent oxidation and keep out moisture
  • Pressure cast aluminum body effectively seals out moisture and resists corrosion
Sub_Brand
Blackburn
Type
2-Conductor Type PAC
