TPI TPI IHP20HWD
TPI IHP20HWD
Kirby Risk #: 3078517
UPC: 686334872195, 00686334872195, 68633487219
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: TPI
Description
Industry Description

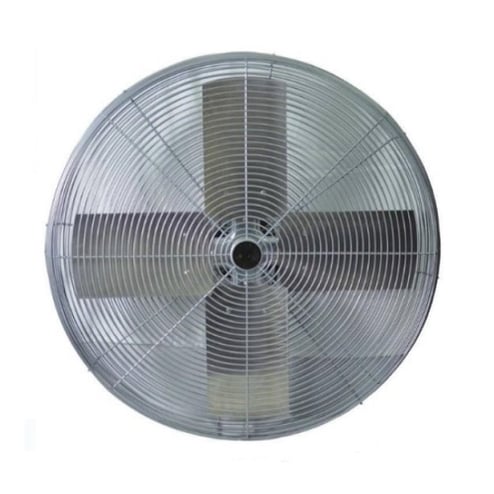

Industrial Assembled Circulator Heads and Mount, Blade Size- 20 IN, Flow Rate- 7150 CFM, 1/3 HP, 2.2/4.5 AMP, Speed- 1725 RPM, 120/240 V, 1 Speed, Paddle Blade, Motor Drive Type, 1 PH
Modified Industry Description
20IN WASHDOWN RATED ASSEMBLED FAN
AD Description
TPI IHP20HWD 1-Phase Assembled Specialty Standard Circulator Head, 20 in Blade, 7150 cfm Flow Rate, 120/240 VAC, 2.2/4.5 A
Specifications
| Amperage Rating |
2.2 A, 4.5 A
|
|---|---|
| Application |
Indoor-Industrial-Washdown Application
|
| Blade_Material |
Aluminum
|
| Blade_Size |
20
|
| Brand Name |
TPI
|
| Country of Origin |
US
|
| Drive_Type |
Motor
|
| Flow_Rate |
7150
|
| Horsepower |
0.3
|
| Housing_Material |
Steel
|
| Model |
IHP20HWD
|
| Mounting |
Pedestal/Wall/I-Beam/Ceiling/Suspension
|
| Number_Of_Speeds |
1
|
| Phase |
1
|
| Special Features |
|
| Speed |
1725
|
| Standard |
cETLus Listed;OSHA
|
| Style |
Paddle Blade
|
| Sub_Brand |
TPI
|
| Type |
1-Phase Assembled Specialty Standard
|
| Voltage Rating |
120/240
|
