Burndy Burndy YG14BTC28
Burndy YG14BTC28
Kirby Risk #: 3002693
UPC: 78181028927, 781810289273, 00781810289273
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description
Copper Compression Bus Bar Connector, 4/0 AWG - 1/0 AWG.
AD Description

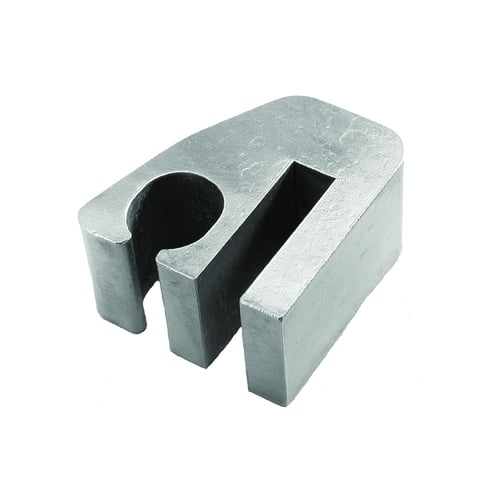

BURNDY® HYGROUND® YG14BTC28 Type YG-B Compression Busbar Tap Connector, 4/0 to 1/0 AWG Max Run/Tap, Copper Alloy
Vendor Description
BURNDY® YG14B2TC2C6C compression bus bar connector is ideally suited for cellular tower applications and is easier to use than exothermic connections. This high conductivity wrought copper connector allows attachment of the ground conductor to the ground bus with just one crimp using the BURNDY® Y750 Hypress hydraulic compression tool and the U1105 die set. This exclusive patent pending design allows the user to attach #2 AWG solid/stranded and/or #6 solid/stranded copper conductor to 1/4 in THK copper bus bar. This connection is suitable using one or two conductors for power, grounding and bonding applications.
Specifications
| Application |
For Direct Barial And Cellular Tower Applicatons And Is Easier To Use Than Exothermic Connections
|
|---|---|
| Conductor Type |
CU C Str-Size;CU C Solid-Size;Bar-Size
|
| Country of Origin |
US
|
| Length1 |
1.3700
|
| Material |
Copper Alloy
|
| Special Features |
|
| Standard |
UL467;UL 486A;CSA C22.2 No 65
|
| Sub_Brand |
HYGROUND
|
| Type |
YG-B
|
