Intermatic Intermatic GZ52BU
Intermatic GZ52BU
Kirby Risk #: 2998398
UPC: 61457328007, 614573280075, 00614573280075
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Intermatic
Description
Industry Description
The DC Hour Meters 52mm Round Flush Mount, Black Bezel, IP65, 8-30VDC The GZ Series DC Hour Meters are set to operate on DC voltages. They measure up to six digits to determine usage. All GZ Series Meters can withstand an IP20 Environmental rating (IP54 with use of gasket).
Modified Industry Description
DC HOUR METERS 52MM ROUND FLUSH
AD Description

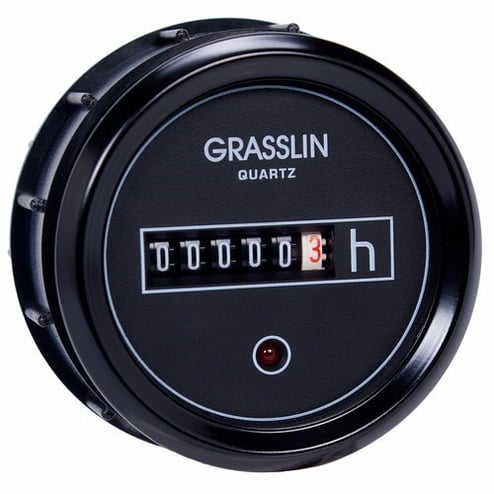

Intermatic® Grasslin GZ52BU 2-Phase Round DC Hour Meter, 6 Digits, Analog Display
Vendor Description
The Grasslin GZ Series DC hour meters are the answer to applications requiring low power load usage metering. Compact, tamperproof GZ40 meters are sealed against the environment (IP rated up to IP66) to provide years of service. Accumulated load usage hours are stored in the mechanical indicating counter; therefore, no battery is required to maintain elapsed time. An input diode provides polarity protection. A quartz crystal time base ensures accurate, long-term timekeeping.
Specifications
| Accuracy |
ñ0.5 S/DAYS @ 20 DEG C
|
|---|---|
| Amperage Rating |
<3 MILAMP @ 12 VDC
|
| Application |
DC Voltage
|
| Brand Name |
Intermatic
|
| Country of Origin |
CN
|
| Display |
Analog
|
| Enclosure |
Dustproof, Splashproof
|
| Model |
GZ52BU
|
| Package_Quantity |
1
|
| Phase |
Two
|
| Special Features |
|
| Standard |
UL Recognized, cCSAus, CE, DIN EN60068-2-27, DIN EN60068-2-64
|
| Sub_Brand |
Intermatic
|
| Temperature_Rating |
-40 to 185
|
| Type |
Non-Resettable, DC Hour Meter
|
| Voltage Rating |
8 - 30
|
| Width_2 |
3.3000
|
