Appleton Appleton EYDM200


Description

Industry Description

UNILETS EYDM Series 25 PCT Fill Vertical Conduit Drain Sealing Fitting With Removable Nipple, Size: 2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered MNPT X Tapere

Modified Industry Description

SEALING UNILET WITH DRAIN

AD Description

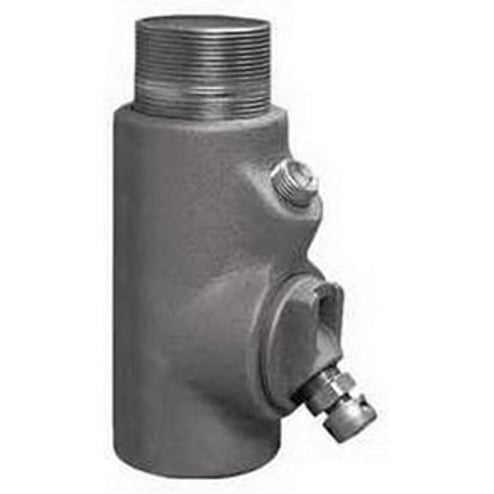

Appleton® UNILETS® EYDM200 Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting With Removable Male Nipple, 2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated

Specifications

Application
For Use With Threaded Rigid Metal Conduit And IMC
Color
Silver
Connection
Tapered MNPT X Tapered FNPT
Country of Origin
MX
Dimensions
6.13 in L x 2.88 in W
Finish
Triple Coated
Length1
8.0000
Material
Malleable Iron
Series
EYDM
Size
2
Special Features

  • 25% fill vertical conduit drain sealing fittings
  • Access cover has drain valve for automatic draining of water accumulation above the seal
  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • Chromate/epoxy powder coated/zinc electroplated finish
  • Close radius type for sealing vertical conduit runs
  • Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
  • Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
  • Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
  • Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
  • Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
  • Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
  • Restrict any explosion to the sealed off enclosure
  • Smooth, rounded integral bushing in each hub to protect conductor insulation
  • Tapered MNPT X tapered FNPT connection
Standard
UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups B, C, D; Class II, Groups E, F, G; and Class III
Sub_Brand
Appleton
Type
Dust-Ignitionproof Explosionproof Raintight
