Panduit Pan-Net Panduit Pan-Net QZ1B1E0BA30P1


Description

Industry Description

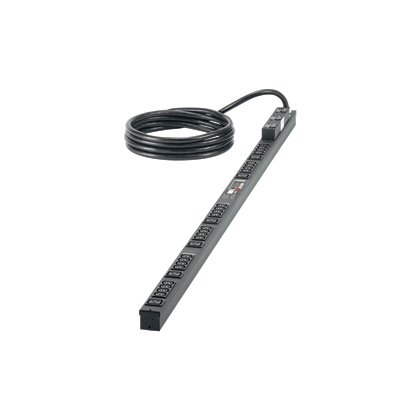

Vertical power strip 20 A, 208V, 24 IEC C-13 and 6 IEC C-19 receptacles, RJ-45 Ethernet port with red LED current monitor, and 10' power cord with NEMA 6-20P plug. UL and c-UL Listed.Dimensions: 66.3"H x 2.0"W x 2.0"D (1683mm x 51mm x 51mm)

Modified Industry Description

Vertical, Mixed (24) C-13 & (6)

AD Description

Panduit® QZ1B1E0BA30P1 Networked Aggregate Monitoring Power Outlet Strip, 208 VAC, 20 A, 30 Outlets, 10 ft L Cord, Surface Mount

Specifications

Amperage Rating
20
Country of Origin
USA
Dimensions
66.3 in H x 2 in W x 2 in D
Frequency_Rating
208V
Mounting
Surface
Phase
20 Amp
Plug_Type
NEMA 6-20P
Special Features

  • Integrated power monitoring and management with on unit display provides True-RMS input current load (in amps) for each power circuit or phase to properly load balance and maximize power circuits
  • Integrates with Panduit® PIM™ software which aggregates power information through a single web based GUI interface
  • Mounting buttons allow tool less installation of power strips
  • Provides user defined alarm/messaging capabilities for specific events that exceeded thresholds to help minimize network downtime
  • Red LED current monitor
  • Remote access to power consumption data via a web based GUI provides global network access to real time power information
Sub_Brand
Panduit
Type
Networked Aggregate Monitoring
Voltage Rating
208
Wattage
3.3
