Leviton Leviton 5R2UM-F06


Description

Industry Description

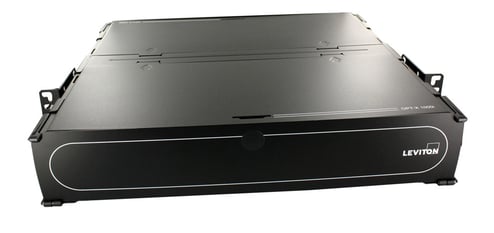

Opt-X 1000I 2RU Distribution and Splice Enclosure, Empty, Accepts up to 6 Opt-X Adapter Plates or 6 Opt-X P-N-P Modules

AD Description

Leviton® OPT-X® 5R2UM-F06 1000i SDX 2-RU Empty Distribution and Splice Enclosure, Steel/Santoprene

Vendor Description

1000i rack mount enclosure allows for inter connect or cross connect between backbone cable and active equipment while using minimum rack space in a frame or cabinet setting. The enclosures features and design allow for easy field termination of connectors, splicing or pre-terminated Plug-N-Play solutions. The fiber enclosure is primarily used in data centers, equipment rooms and telecommunication rooms.

Specifications

Application
Data Centers, Equipment Rooms, Telecommunication Rooms
Brand Name
Leviton
Color
Black
Construction
16-Gauge Steel
Country of Origin
US
Material
Santoprene (Grommet)
Mounting
Rack
Size
3.47 H X 19 W X 15.78 D
Special Features

  • 1000i rack mount enclosures allow for inter connect or cross connect between backbone cable and active equipment, for up to 72 LC fibers per RU, in a frame or cabinet setting
  • 15 in D for high density fiber termination and splicing
  • 1RU or 2RU retrofit sliding trays, sold separately, allow for higher density applications, up to 96 LC fibers per RU, using HDX MTP® cassettes or HDX adapter plates (sliding tray does not accommodate splice trays)
  • Accepts up to (6) OPT-X® adapter plates or (6) OPT-X® PNP modules and accepts up to (6) splice trays
  • Front saddles pivot for improved patch cord routing
  • Removable front and rear covers offer better access to the interior of the enclosure
  • Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable and minimizes dust build-up
  • Stackable and adjustable fiber rings simplify cable organization
  • The enclosures' features and design allow for easy field termination of connectors, splicing or pre-terminated plug-n-play solutions
Standard
TIA-568-C.3
Sub_Brand
OPT-X
Type
Opt-X 1000i 2RU Distribution and Splice Enclosure
Width_2
19.4380
Width_3
19.4380
