Ericson Ericson 1510-PW6P


Description

Industry Description

PLUG NEMA 5-15, PERMA-TITE EXTREME GRADE, WATERTIGHT YELLOW WIRING DEVICE, STRAIGHT 15 AMP 125V 1PH 2P/3W, SIZE = SM, 14W47

Modified Industry Description

PLUG-15AMP-125V STRAIGHT BLADE

AD Description

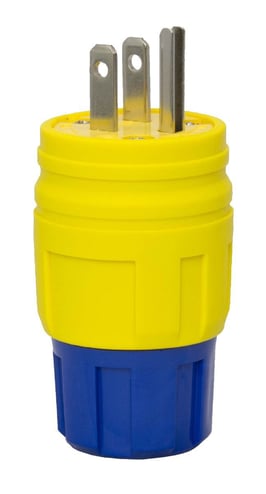

Ericson® Perma-Tite® 1510-PW6P 1-Phase Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Brilliant Blue/Radiant Yellow

Specifications

Amperage Rating
15
Application
For Food Processing, Pulp And Paper Mills, Refineries And Petro Chem Facilities, Ship Yards, Utilities, Marine
Color
Brilliant Blue/Radiant Yellow
Country of Origin
USA
Dimensions
1.63 in Dia x 2.68 in L
Enclosure
NEMA 4/4X/6/6P/IP67
Length1
12.0000
Material
Polybutylene Terephthalate
NEMA_Rating
NEMA 5-15
Number_Of_Poles
2
Size
1.630 X 2.680
Special Features

  • Captive assembly and terminal screws reduce the risk of losing small parts
  • Color coded sealing bushings are provided to fit a variety of cord diameters
  • Corrosion-resistant nickel plated blades, impact, corrosion, crushing and chemical-resistant
  • Devices resist high-pressure hose down of 1000 psi
  • Ericson® new brilliant blue and radiant yellow high visibility dual color safety system symbolizes that legendary Ericson® quality
  • From the invention of the first dead-front, back-wired electrical plug-in 1929 and patent in 1936 to present day innovations such as Perma-Tite® 2 devices that are designed to meet or exceed UL and IEC watertight standards
  • High visibility Ericson® safety yellow and blue colors
  • High voltage arcing and carbon tracking
  • Keyed body and cover for easy alignment/assembly
  • Nickel plated blade
  • Perma-Tite® 2 plugs and connectors are engineered and manufactured to the highest quality standards to provide the ultimate in electrical service and protection
  • Perma-Tite® plugs and connectors all engineered with dead-front, back-wired design
  • Plug and connector bodies made with PBT chosen for its high resistance to moisture absorption
  • Removable or replaceable self-retained sealing cap provided with connector to keep out contaminants when not in use
  • Solid brass blade
  • Standard voltages from 120 VAC through 600 VAC
  • They are designed and proven to do their best under the worst conditions in a broad array of the most severe food processing, industrial, marine, construction and petro-chemical work environments
  • Tongue and groove sealing system provides environmental protection of NEMA Type 4, 4X, 6, 6P and IP67
  • Transparent backplate for easy inspection of individual wiring chamber
  • Transparent backplate makes for quick visual wiring checks
Standard
UL Listed, CSA Certified, Meets IEC, OSHA
Sub_Brand
Ericson
Type
Grounding
Voltage Rating
125
