Hubbell Lighting Hubbell Lighting DDL-9L1


Description

Industry Description

Dusk-to-dawn wall mount application that offers H.I.D. energy savings and safety/security lighting.

Modified Industry Description

40W 120V 5K LED DUSK DAWN

AD Description

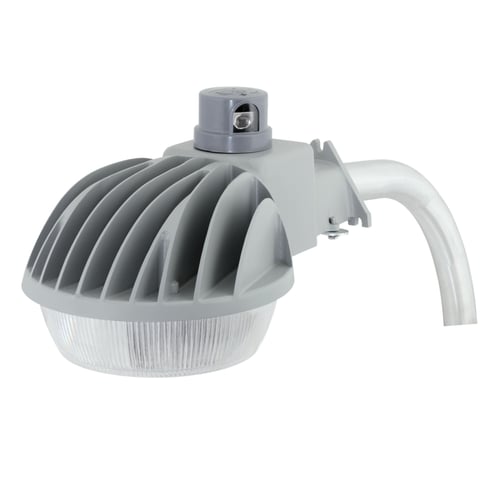

Hubbell® Outdoor Lighting tradeSELECT® DDL-9L1 Multi-Purpose Dusk-to-Dawn Luminaire, (9) LED Lamp, 39.5 W Fixture, 120 VAC, Textured Powder Coated/Painted Housing

Specifications

Amperage Rating
0.19 to 0.44
Application
general purpose area, security, roadway and landscape lighting
Ballast_Type
Fixed Output LED Driver
Brand Name
Hubbell Lighting
Color
Gray
Color_Temperature
5000
Country of Origin
CN
Fixture_Finish
powder coat paint
Fixture_Material
Aluminum
Frequency_Rating
50/60
Housing_Finish
Textured Gray Powder Painted
Housing_Material
Die-Cast Aluminum
Lamp_Type
LED
Lamp_Wattage
53
Lumens
4230
Number_Of_Lamps
9
Reflector_Type
Symmetric lens
Size
29.70 in X 9.50 in X 16.20 in
Special Features

  • Less refractor provides zero uplight design for environmentally friendly installations
  • Low EPA modern styling
  • Refractor provides enhanced security lighting and glare control
  • Refractor provides enhanced security lighting and LED brightness control when installed
  • Rugged die cast aluminum housing with both 2-3/8 and 1-5/8 in OD mast arm mount capability as well as direct wall/surface mounting
  • Rugged die-cast aluminum housing with textured gray powder paint provides corrosion resistance and clean finis
  • Zero uplight design for environmentally friendly installations
Standard
UL 1598; ANSI 3G Rated
Sub_Brand
Hubbell Outdoor Lighting
Type
Dusk-to-Dawn
Voltage Rating
120
Width_2
15.0000
