Southwire Southwire 10 STR 2/C CU THHN SIM PARALLEL YELLOW/GRAY-YELLOW 600 FT


Description

Industry Description

10 STR 2/C CU THHN SIM PARALLEL YELLOW/GRAY-YELLOW 600 FT

Modified Industry Description

10 STR 2/C CU THHN SIM YEL/A-Y COIL

AD Description

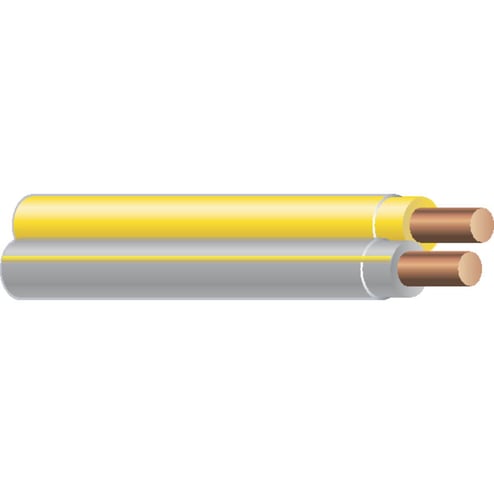

Southwire® SIMpull® THHN® 58725601 Parallel THHN Building Wire, 600 VAC, (2) 10 AWG Solid Copper Conductor, 600 ft L, Gray/Yellow

Specifications

Amperage Rating
30
Application
Commerical
Brand Name
Southwire
Conductor Type
Solid Copper
Conductor Size
10
Country of Origin
USA
Insulation_Material
PVC
Jacket_Material
Nylon
Number Of Conductors
2
Outside_Diameter
161
Package_Quantity
600
Special Features

  • 15 mil insulation thickness, 4 mil jacket thickness
  • Dry locations not to exceed 90 deg C
  • No lube
  • SIMpull® THHN® copper conductors are designed to be installed without application of a pulling lubricant
  • Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding
  • Sunlight resistant
  • The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull® technology
Sub_Brand
Southwire
Type
THHN
Voltage Rating
600
