Lithonia Lighting Lithonia Lighting TWH LED 10C 1000 50K T3M MVOLT DDBXD


Description

Industry Description

Glass Refractor Wall-Pack, LED, 10 LEDs, Gen C, 1000mA driver, 50K color temperature, Type III Medium, 120-277V, Dark bronze finish, super durable, SKU - 216UTP

Modified Industry Description

39W LED WALLPACK 120/277V 5000K

AD Description

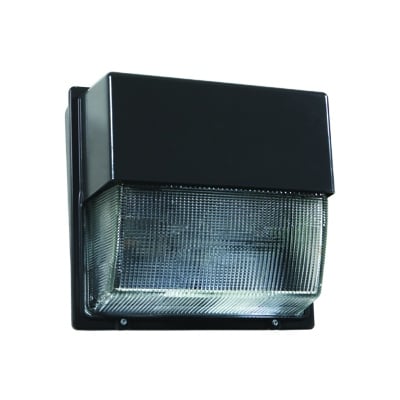

Lithonia Lighting® TWH LED 10C 1000 50K T3M MVOLT DDBXD Outdoor Wallpack, (10) LED Lamp, 39 W Fixture, 120 to 277 VAC, Dark Bronze Housing

Specifications

Amperage Rating
1
Application
Light Commercial
Average_Life
100,000
Ballast_Type
Magnetic
Brand Name
Lithonia Lighting
Color
Bronze
Color_Rendering_Index_CRI
70
Color_Temperature
5000
Country of Origin
MX
DIMMABLE
True
Environmental_Conditions
Outdoor
Finish
Gloss
Fixture_Finish
Gloss
Fixture_Material
Aluminum
Fixture_Wattage
39
Housing_Finish
Dark Bronze
Housing_Material
Die Cast Aluminum
Lamp_Included
True
Lamp_Type
LED
Lamp_Wattage
250
Lens_Material
Glass
Lens_Type
Tempered Glass
Lumens
3398
Mounting
Surface
Number_Of_Lamps
10
Shape
Rectangular
Socket_Type
Not Applicable
Special Features

  • Back housing is separated from front housing, eliminating ballast weight and promoting easy handling
  • Exterior parts are protected by a zinc infused super durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering
  • Housing is completely sealed against moisture and environment contaminants
  • Rated for -40 deg C minimum ambient
  • The easy-to-install design makes it the smart choice for building mounted doorway and pathway illumination for nearly any facility
  • The energy savings, long life and easy-to-install design of the TWH LED make it the smart choice for building mounted doorway and pathway illumination for nearly any facility
  • The LED driver is mounted to the front casting to thermally isolate it from the light engine for low operating temperature range and long life
  • The TWH is ideal for outdoor storage areas, warehouse and factory perimeters, and loading docks
Standard
CSA
Style
Traditional
Sub_Brand
Lithonia Lighting
Type
Wall Pack
Voltage Rating
120 to 277
Wattage
78
