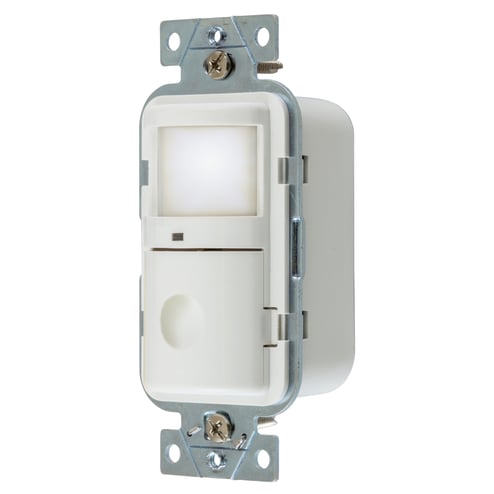

Hubbell Hubbell WS2000NW
Hubbell WS2000NW
Kirby Risk #: 2921867
UPC: 78358525631, 783585256313, 00783585256313, 30783585256314
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Lighting Controls, Occupancy/VacancySensors, Wall Switch, Passive Infrared Technology, 120/277V AC, WithNight Light, White
Modified Industry Description
120/277V WHITE OCC VAC SENSOR W/NIGHT LIGHT
AD Description
Wiring Device-Kellems tradeSELECT™ WS2000NW Occupancy Sensor Switch With Night Light, 120/277 VAC, Passive Infrared Sensor, 1200 sq-ft Coverage, Wall Mount
Vendor Description
Requires a clear, unobstructed line of sight for detection, because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones. Movement across zones is interpreted as occupancy. Excellent for small room control.
Specifications
| Application |
Single Circuit
|
|---|---|
| Brand Name |
Hubbell
|
| Color |
White
|
| Country of Origin |
TW
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Functions |
Terminal Screws
|
| Humidity |
20% to 90% non-condensing relative humidity
|
| Load |
Lighting Circuit
|
| Material |
ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
|
| Mounting |
Mounting Screws
|
| Operating_Temperature |
0 Degrees C to 40 Degrees C
|
| Sensitivity |
Adjustable
|
| Sensor |
Passive Infrared
|
| Size |
4.15 X 1.82 X 1.62
|
| Special Features |
|
| Standard |
cULus Listed To UL773A
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Supply_Voltage |
120/277 AC
|
| Type |
Wall Sensor Switch
|
| Voltage Rating |
120/277
|
